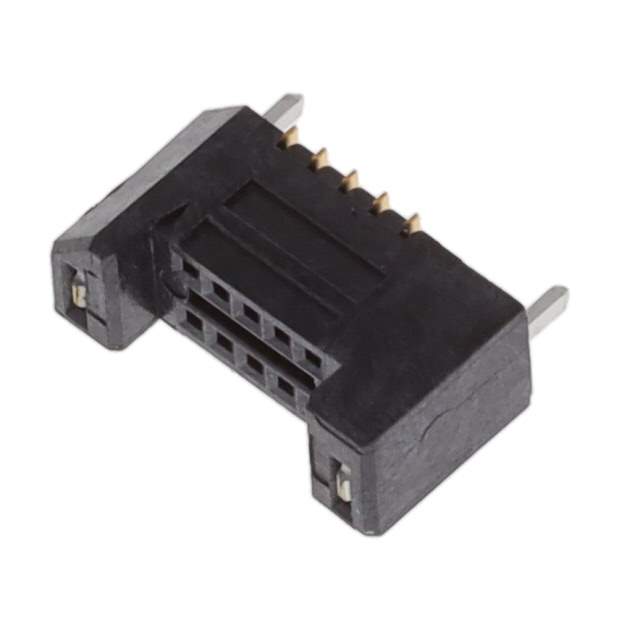

Same model may have multiple batches, images only for reference.

SEM-105-02-03.0-H-D-WT

Name: SEM-105-02-03.0-H-D-WT
Brand: Samtec Inc.
SKU: 1154674
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEM-105-02-03.0-H-D-WT
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS 0.031 GOLD SMD / 10 Position Receptacle Connector 0.031" (0.80mm) Surface Mount Gold
Datasheet	SEM-105-02-03.0-H-D-WT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SEM
Package	Tray
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.031" (0.80mm)
Number of Rows	2
Row Spacing - Mating	0.125" (3.18mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.177" (4.50mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Mated Stacking Heights	6mm, 7mm, 10mm
Features	Solder Retention
Current Rating (Amps)	2.6A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	Flash
Base Product Number	SEM-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	162
Win Source Part Number	1154674-SEM-105-02-03.0-H-D-WT
Ultra Librarian 3D Model	Ultra Librarian SEM-105-02-03.0-H-D-WT CAD Model

Alternative Products

Description

The Tiger Eye™ SEM series rectangular connector is a 10-position receptacle that features solder retention for easy and secure mating.

Number of Positions: 10
Features: Solder Retention
Application: Board to Board
Pitch: 0.031" (0.80mm)
Number of Rows: 2
Fastening Type: Push-Pull
Contact Type: Female Socket
Manufacturer: Samtec Inc.
Base Product Number: SEM-105-02-03.0-H-D-WT
