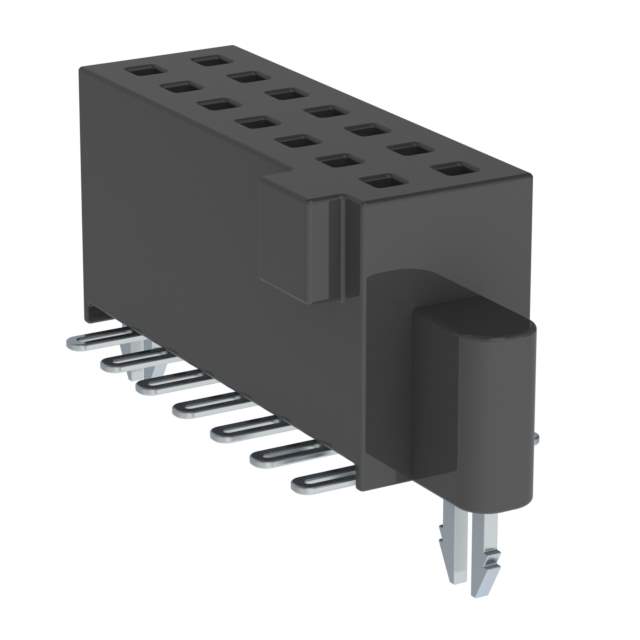

SFM-107-02-L-D-LC-P Real Image
Same model may have multiple batches, images only for reference.

SFM-107-02-L-D-LC-P

Part No SFM-107-02-L-D-LC-P
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFM-107-02-L-D-LC-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFM
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 14
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features Board Lock, Pick and Place
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFM-107
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287601-SFM-107-02-L-D-LC-P
Ultra Librarian 3D Model Ultra Librarian SFM-107-02-L-D-LC-P CAD Model

Description

The Tiger Eye™ SFM series from Samtec Inc. offers a high-quality connector solution for rectangular connectors.

  • Model: SFM-107-02-L-D-LC-P
  • Connector Type: Receptacle
  • Features: Board lock and pick and place
  • Positions: 14
  • Contact Type: Female sockets
  • Positions Loaded: All
  • Rows: Two
  • Pitch: 0.050" (1.27mm)
  • Voltage Rating: 250VAC
  • Current Rating: 3.2A per contact
  • Contact Material: Beryllium Copper
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Mounting Type: SMD (SMT)
  • Application: Board to board or cable
  • Mated Stacking Heights: 6.15mm to 11.76mm
