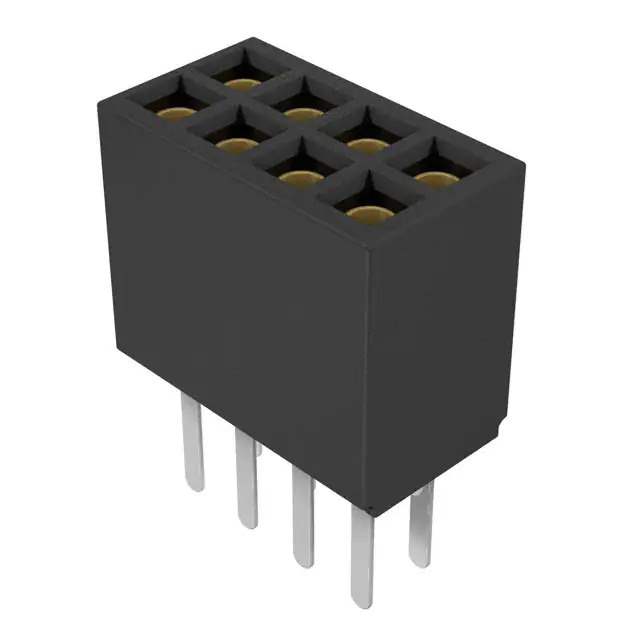

Same model may have multiple batches, images only for reference.

SFMC-104-01-S-D

Name: SFMC-104-01-S-D
Brand: Samtec Inc.
SKU: 894264
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFMC-104-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 8POS 0.05 GOLD PCB / 8 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Datasheet	SFMC-104-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFMC
Package	Tube
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFMC-104
Standard Package	104 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	894264-SFMC-104-01-S-D
Ultra Librarian 3D Model	Ultra Librarian SFMC-104-01-S-D CAD Model

Alternative Products

Description

The SFMC-104-01-S-D is a rectangular connector header from the Tiger Eye™ SFMC series.

Manufacturer:Samtec Inc.
Series: Tiger Eye™ SFMC
Product Name:SFMC-104-01-S-D
Positions: 8
Pitch: 0.050" (1.27mm)
Type: Receptacle with Female Socket Contacts
Connection: Board-to-Board or Cable
Fastening Type: Push-Pull
Contact Material: Beryllium Copper
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Mounting: Through Hole
Temperature Range: -55°C to 125°C
Status: Active
