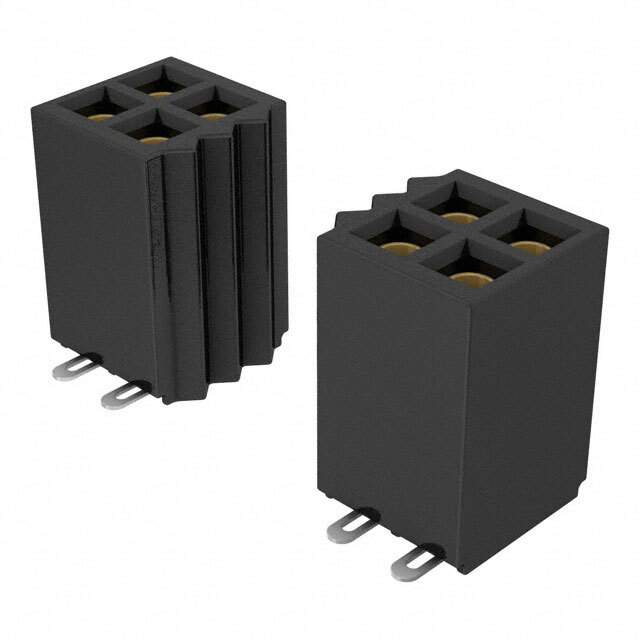

The Samtec Inc. SFMC-108-T2-F-D is a rectangular connector that is part of the Tiger Eye™ SFMC series.

• Series: Tiger Eye™ SFMC
• Package: Tube
• Package Quantity: 54
• Mounting Type: SMD (SMT)
• Connector Type: Receptacle
• Contact Type: Female socket
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-pull
• Contact Material: Phosphor bronze
• Voltage Rating: N/A
• Flammability Rating: UL94 V-0
• Connector Style: Board to board or cable
• Pitch - Mating: 0.050" (1.27mm)
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 3.00μin (0.076μm)
• Contact Finish - Post: Tin
• Insulation Color: Black
• Row Spacing - Mating: 0.050" (1.27mm)
• Insulation Height: 0.185" (4.70mm)
• Contact Shape: Square
• Operating Temperature: -55°C ~ 125°C
• MSL Level: 1 (Unlimited)
• Current Rating: 2.9A per contact
• HTSUS: 8536.69.4040
