Same model may have multiple batches, images only for reference.

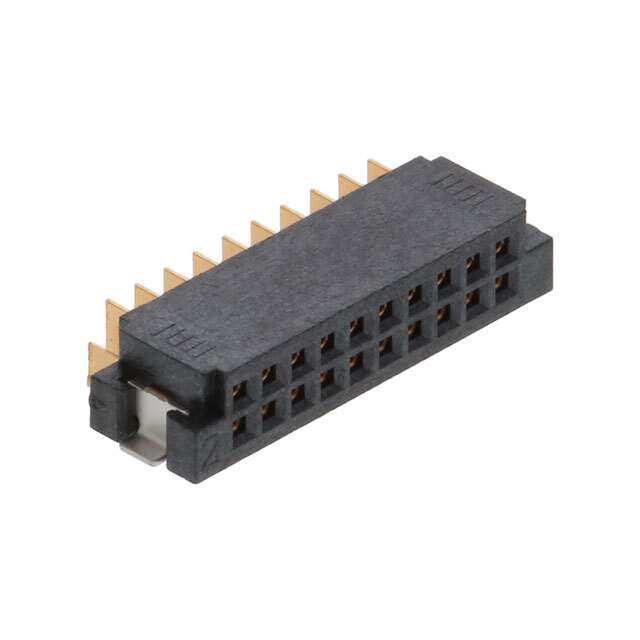

SFMH-110-02-L-D-WT-TR Real Image
Same model may have multiple batches, images only for reference.

SFMH-110-02-L-D-WT-TR

Part No SFMH-110-02-L-D-WT-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMH-110-02-L-D-WT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMH
Package Tape & Reel
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.135" (3.43mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Solder Retention
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post Flash
Base Product Number SFMH-110
Other Names SAM14528CT,SAM14528DKR,SFMH-110-02-L-D-WT-FR,SAM14528TR,SFMH-110-02-L-D-WT-TR
Standard Package 875
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285491-SFMH-110-02-L-D-WT-TR
Ultra Librarian 3D Model Ultra Librarian SFMH-110-02-L-D-WT-TR CAD Model

Description

The Tiger Eye™ SFMH series of connectors from Samtec Inc. is a great choice for board-to-board applications.

  • Positions: 20
  • Rows: 2
  • Feature: solder retention
  • Connector Type: female socket
  • Positions Loaded: all
  • Fastening Type: push-pull
  • Contact Material: phosphor bronze
  • Insulation Material: liquid crystal polymer (LCP)
  • Temperature Range: -55°C to 125°C
  • Packaging: tape and reel
  • Mated Stacking Height: 0.135 inches (3.43mm)
  • Contact Shape: square
  • Contact Finish: gold
  • Contact Finish Thickness (Mating): 10.0μin (0.25μm)
  • Contact Finish (Post): flash
  • Flammability Rating: UL94 V-0
  • REACH: unaffected
