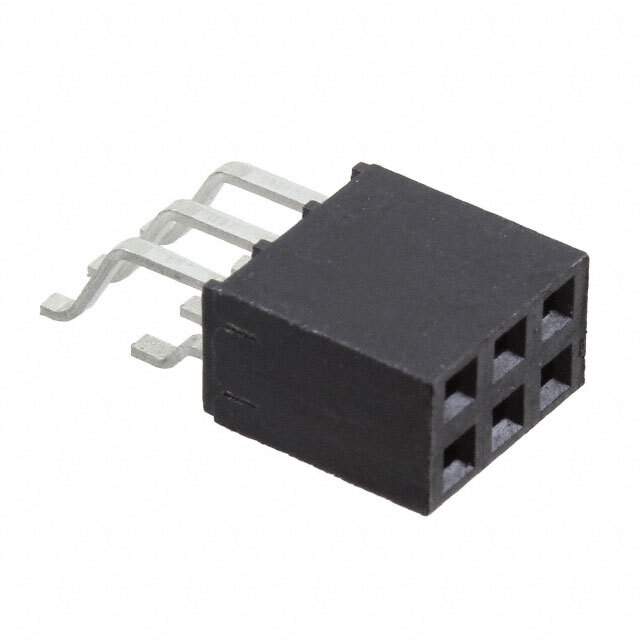

Same model may have multiple batches, images only for reference.

SMH-103-02-T-D-TR

Name: SMH-103-02-T-D-TR
Brand: Samtec Inc.
SKU: 328997
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMH-103-02-T-D-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.100 C.L. HORIZONTAL SMT SOCKET
Datasheet	SMH-103-02-T-D-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Reel - TR
Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	2.54mm
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.195" (4.95mm)
Temperature Range - Operating	-55°C to 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Win Source Part Number	328997-SMH-103-02-T-D-TR
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian SMH-103-02-T-D-TR CAD Model

Alternative Products

Description

The Samtec Inc. 328997-SMH-103-02-T-D-TR is a board to board connector with a receptacle connector type and forked contact type.

Pitch mating: 2.54mm
Voltage and current rating: Not Specified
Mounting style: Surface mount, right angle
Material flammability rating: UL94 V-0
Supply and demand status: limited
