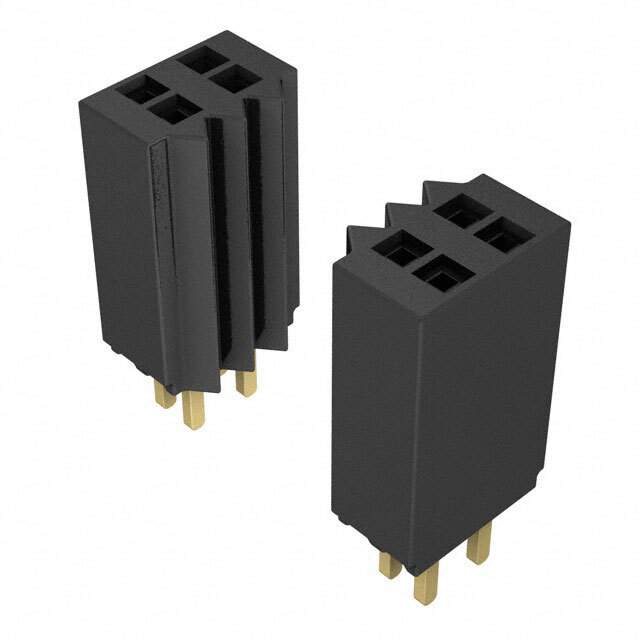

Same model may have multiple batches, images only for reference.

SMS-123-01-G-D

Name: SMS-123-01-G-D
Brand: Samtec Inc.
SKU: 794802
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SMS-123-01-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050 MICRO STRIPS / Conn Socket Strip SKT 46 POS 1.27mm Solder ST Thru-Hole Tube
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	SMS
Packaging	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	46
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.100" (2.54mm)
Operating Temperature Range	-55°C ~ 125°C
Contact Finish - Post	Gold
Current Rating	5A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3μin (0.08μm)
Win Source Part Number	794802-SMS-123-01-G-D
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SMS
Introduction Date	March 22, 2001
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian SMS-123-01-G-D CAD Model

Alternative Products

Description

This electronic component is a Samtec Inc. product with a part number of 794802-SMS-123-01-G-D.

Positions: 46
Type: Board to Board Receptacle
Contact Type: Forked
Packaging: Tube
Mounting: Through Hole
Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: Gold (10μin (0.25μm) thickness)
Contact Finish-Post: Gold (3μin (0.08μm) thickness)
Category: Connectors, Interconnects
Halogen-Free: Compliant
