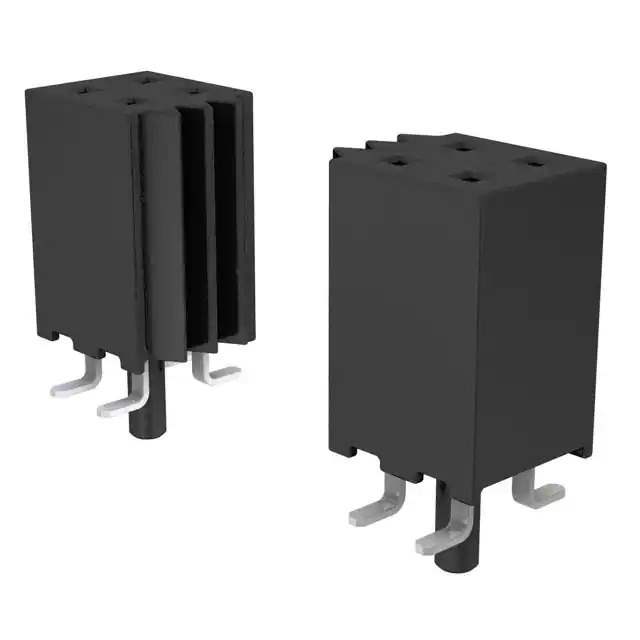

SQW-105-01-S-D-VS-A-K-TR-.NOK Real Image
Same model may have multiple batches, images only for reference.

SQW-105-01-S-D-VS-A-K-TR-.NOK

Part No SQW-105-01-S-D-VS-A-K-TR-.NOK
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description COST EFFECTIVE RUGGED PCB SOCKET / 10 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQW
Package Tape & Reel
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.300" (7.62mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Guide, Pick and Place
Current Rating (Amps) 3.8A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQW-105
Standard Package 350 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 897289-SQW-105-01-S-D-VS-A-K-TR-.NOK
Ultra Librarian 3D Model Ultra Librarian SQW-105-01-S-D-VS-A-K-TR-.NOK CAD Model

Description

The SQW series connector is a high-quality and reliable solution for your rectangular connector needs.

  • Number of Positions: 10
  • Connector Type: Receptacle
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold (3.00µin or 0.076µm)
  • Contact Finish (Post): Tin
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Application: Board to Board or Cable
  • Pitch: 0.079" (2.00mm)
  • Package: Tape & Reel (350 pieces)
  • Manufacturer: Samtec Inc.
  • Series: SQW
  • Status: Active
  • California Prop 65 Compliant: Yes
  • ECCN: EAR99
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
