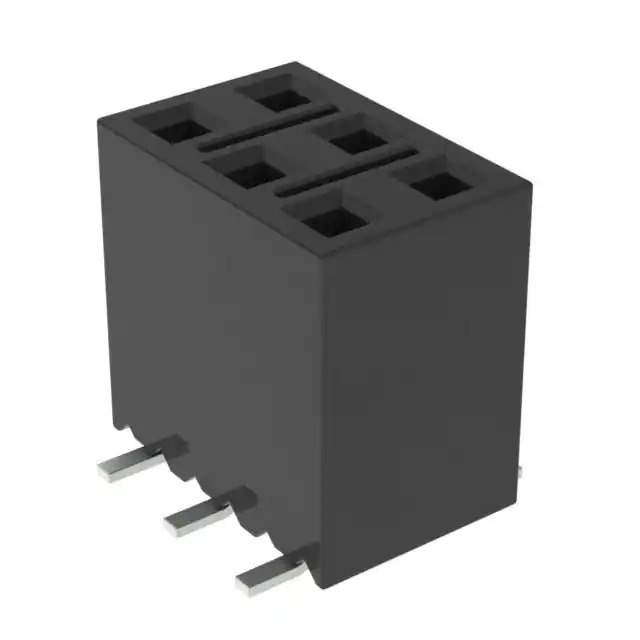

SSM-103-F-DV-K-TR Real Image
Same model may have multiple batches, images only for reference.

SSM-103-F-DV-K-TR

Part No SSM-103-F-DV-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 6POS 0.1 GOLD SMD / 6 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Tape & Reel
Product Status Active
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Features Pick and Place
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-103
Standard Package 475 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 935058-SSM-103-F-DV-K-TR
Ultra Librarian 3D Model Ultra Librarian SSM-103-F-DV-K-TR CAD Model

Description

The SSM series female socket header connector is a versatile component for various electronic applications.

  • Product Name: SSM series female socket header connector
  • Manufacturer: Samtec Inc.
  • Pitch: 0.100" (2.54mm)
  • Positions Loaded: 6
  • Number of Rows: 2
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • Termination: Solder
  • Mounting Type: Surface Mount
  • Pick and Place: Yes
  • Insulation Material: Black Liquid Crystal Polymer (LCP)
  • Operating Temperature Range: -55°C to 125°C
  • Voltage Rating: 405VAC, 572VDC
  • Product Status: Active
  • California Prop 65: Compliant
