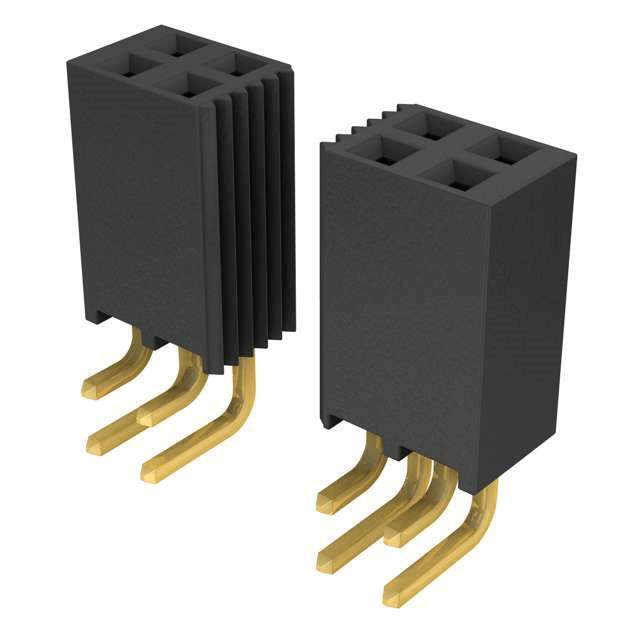

The SSQ series receptacle connector is a rectangular connector that is widely used in interconnect applications.

• Connector Type: Receptacle
• Contact Type: Forked
• Positions Loaded: 18 (All)
• Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Material: Phosphor Bronze
• Contact Finish (Mating): Gold, 30.0µin (0.76µm)
• Voltage Rating: 465VAC, 655VDC
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: Black
• Mounting Type: Through-Hole, Right-Angle
• Row Spacing (Mating): 0.100" (2.54mm)
• Contact Length (Post): 0.100" (2.54mm)
• Insulation Height: 0.195" (4.95mm)
• Applications: Board-to-board or cable style
• Temperature Range: -55°C ~ 125°C
