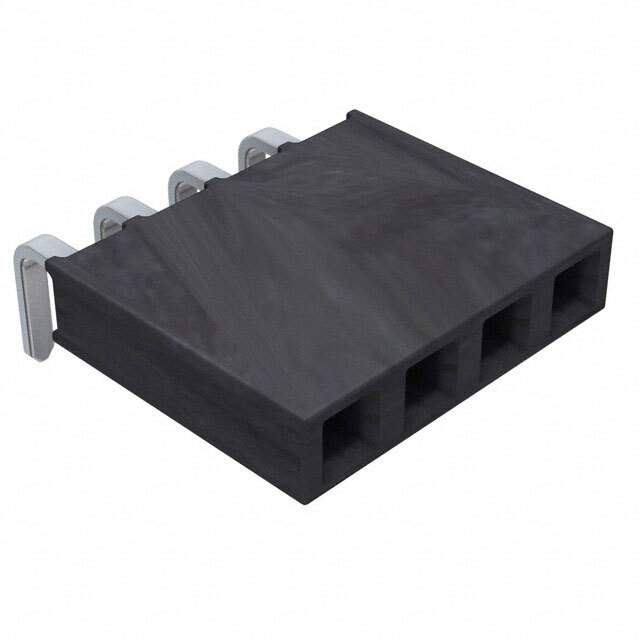

Same model may have multiple batches, images only for reference.

SSW-104-02-T-S-RA

Name: SSW-104-02-T-S-RA
Brand: Samtec Inc.
SKU: 1288433
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSW-104-02-T-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-104-02-T-S-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-104
Other Names	SAM10021
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288433-SSW-104-02-T-S-RA
Ultra Librarian 3D Model	Ultra Librarian SSW-104-02-T-S-RA CAD Model

Alternative Products

Description

The SSW series connector is a rectangular connector designed for board to board or cable connections.

Connector Type: Receptacle
Contact Type: Forked
Positions Loaded: All
Contact Material: Phosphor bronze
Voltage Rating: - volts
Mounting: Through-hole, right angle
Pitch-Mating: 0.100 inches
Contact Finish: Tin
RoHS Compliant: Yes
Temperature Range: -55°C to 105°C
