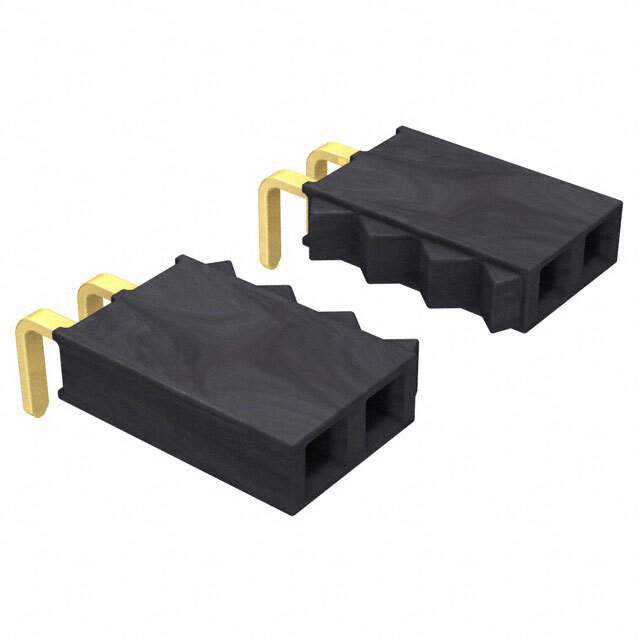

SSW-114-02-G-S-RA Real Image
Same model may have multiple batches, images only for reference.

SSW-114-02-G-S-RA

Part No SSW-114-02-G-S-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSW-114-02-G-S-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSW
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 14
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Current Rating (Amps) 4.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSW-114
Other Names SAM1225-14
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1288592-SSW-114-02-G-S-RA
Ultra Librarian 3D Model Ultra Librarian SSW-114-02-G-S-RA CAD Model

Description

The SSW-114-02-G-S-RA connector is a receptacle type connector with a forked contact type and push-pull fastening type.

  • Connector Type: Receptacle
  • Contact Type: Forked
  • Fastening Type: Push-Pull
  • Positions Loaded: 14
  • Rows: One
  • Termination: Solder
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish-Mating Thickness: 20.0µin (0.51µm)
  • Contact Finish-Post: Gold
  • Contact Finish-Post Thickness: 3.00µin (0.076µm)
  • Temperature Range: -55°C ~ 125°C
  • Current Rating: 4.7A per contact
  • Insulation Height: 0.095 inches (2.41mm)
  • Contact Shape: Square
  • Application: Board to board or cable style
  • Flammability Rating: UL94 V-0
