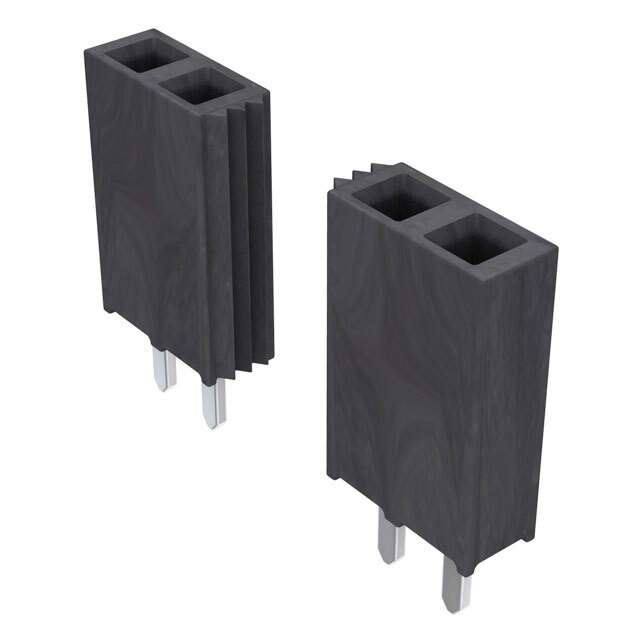

The SSW-123-01-T-S is a socket strip connector from Samtec Inc.'s SSW series. This series is recognized for its reliable board-to-board connectivity solutions. The SSW-123-01-T-S is designed for through-hole mounting on printed circuit boards (PCBs), providing a secure and dependable connection.

Applications

• Board-to-board Connections: Connects two PCBs together, facilitating data and power transfer.
• Signal Routing: Routes signals efficiently within electronic devices and systems.
• Prototyping: Suitable for prototyping and testing electronic designs.
• Industrial Control Systems: Integrated into industrial control equipment for board-level connectivity.
• Telecommunications Equipment: Used in telecommunications applications for reliable signal routing.

Features

• Number of Positions: 23 (single row) providing multiple connection points in a single line.
• Pitch: 0.100" (2.54 mm) which aligns with standard PCB grid patterns.
• Mounting Type: Through-hole mounting for secure mechanical and electrical connection to the PCB.
• Row Spacing: Single row configuration for compact designs.
• Body Orientation: Straight for vertical board stacking or parallel connections.
• Insulator Material: Black Liquid Crystal Polymer (LCP) which provides high-temperature resistance and chemical inertness.
• Contact Material: Phosphor Bronze which provides a balance of conductivity and mechanical strength.
• Plating: Gold plating on contacts ensures low contact resistance and corrosion protection.

Benefits

• Reliable Electrical Connection: Gold-plated contacts ensure consistent and reliable electrical performance.
• Robust Mechanical Attachment: Through-hole mounting provides a mechanically strong connection to the PCB, withstanding vibration and stress.
• High-Temperature Performance: LCP insulator maintains its properties at elevated temperatures.
• Versatile Connectivity: Suitable for a wide range of board-to-board connection applications.
• Corrosion Resistance: Gold plating provides excellent resistance to corrosion, ensuring long-term reliability.

The SSW-123-01-T-S socket strip connector from Samtec offers a robust solution for board-to-board connectivity needs. Its combination of durable materials, gold-plated contacts, and through-hole mounting makes it suitable for demanding environments and applications requiring long-term reliability and performance. The single-row configuration allows for compact designs.
