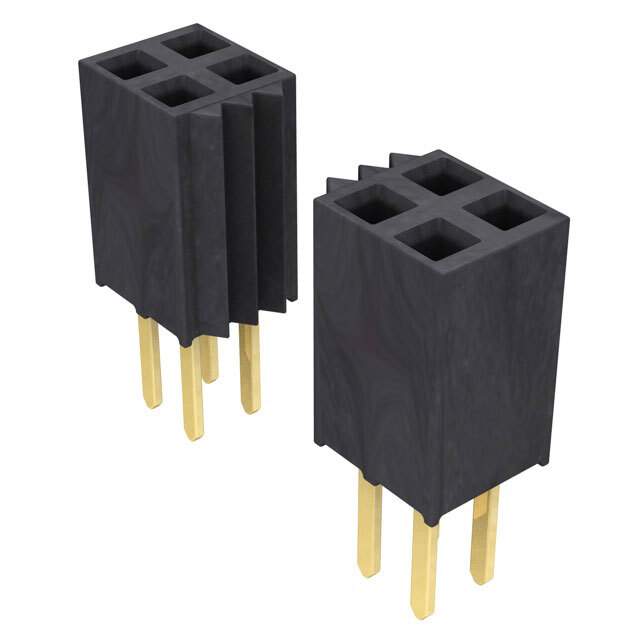

Same model may have multiple batches, images only for reference.

SSW-126-02-G-D

Name: SSW-126-02-G-D
Brand: Samtec Inc.
SKU: 1288732
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SSW-126-02-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-126-02-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	52
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.194" (4.93mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SSW-126
Other Names	SAM1214-26
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288732-SSW-126-02-G-D
Ultra Librarian 3D Model	Ultra Librarian SSW-126-02-G-D CAD Model

Alternative Products

Description

The Samtec Inc. SSW series is a rectangular connector that is suitable for board to board or cable applications.

Application: board to board or cable
Number of Positions: 52
Contact Type: forked
Contact Material: phosphor bronze
Current Rating: 4.7A per contact
Temperature Range: -55°C to 125°C
