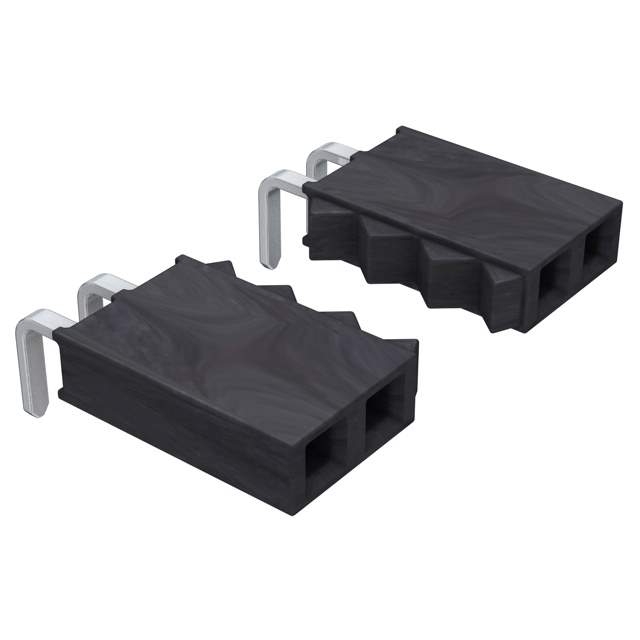

SSW-136-02-S-S-RA

Name: SSW-136-02-S-S-RA
Brand: Samtec Inc.
SKU: 1287971
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-136-02-S-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-136-02-S-S-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	36
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-136
Other Names	SAM1220-36
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287971-SSW-136-02-S-S-RA
Ultra Librarian 3D Model	Ultra Librarian SSW-136-02-S-S-RA CAD Model

Alternative Products

Description

The SSW-136-02-S-S-RA is a rectangular connector from Samtec Inc.

Connector Type: receptacle type
Contacts: forked
Positions Loaded: 36 positions loaded for all rows
Pitch: 0.100" (2.54mm)
Contact Finish: gold
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: phosphor bronze
Insulation Material: liquid crystal polymer (LCP)
Flammability Rating: UL94 V-0
Current Rating: 4.7A per contact
Temperature Range: -55°C to 125°C
Mounting: through-hole, right angle mounting
Connections: board-to-board or cable style
REACH: unaffected status
ECCN: EAR99
