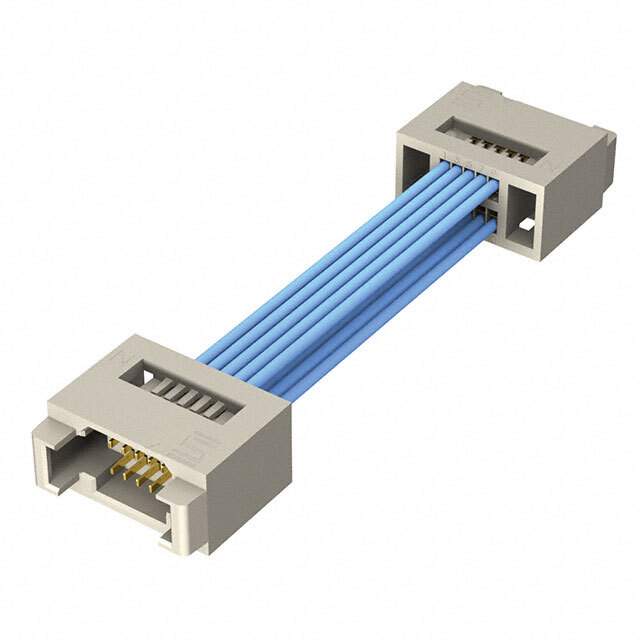

T1SDT-05-28-GF-06.0-T3 Real Image
Same model may have multiple batches, images only for reference.

T1SDT-05-28-GF-06.0-T3

Part No T1SDT-05-28-GF-06.0-T3
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Description CBL ASSY 1MM 10POS M TO F / 10 Position Cable Assembly Rectangular Socket to Plug, Reversed 0.500' (152.40mm, 6.00")
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Micro Mate™ T1SDT
Package Bulk
Connector Type Socket to Plug, Reversed
Number of Positions 10
Number of Rows 2
Pitch - Connector 0.039" (1.00mm)
Length 0.500' (152.40mm, 6.00")
Features Latch Lock
Color Blue, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Base Product Number T1SDT-05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Other Names 612-T1SDT-05-28-GF-06.0-T3
Standard Package 1
Win Source Part Number 1205627-T1SDT-05-28-GF-06.0-T3
Ultra Librarian 3D Model Ultra Librarian T1SDT-05-28-GF-06.0-T3 CAD Model

Description

The Micro Mate™ T1SDT series cable assembly is a 10-position rectangular cable assembly designed for unshielded usage.

  • Connector Type: socket to plug, reversed
  • Features: latch lock
  • Cable Termination: crimped
  • Contact Finish: gold
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • Cable Color: blue
  • Shielding: unshielded
  • Length: 0.500' (152.40mm, 6.00")
  • Pitch: 0.039" (1.00mm)
  • Package: bulk
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8544.42.9090
  • Manufacturer: Samtec Inc.
