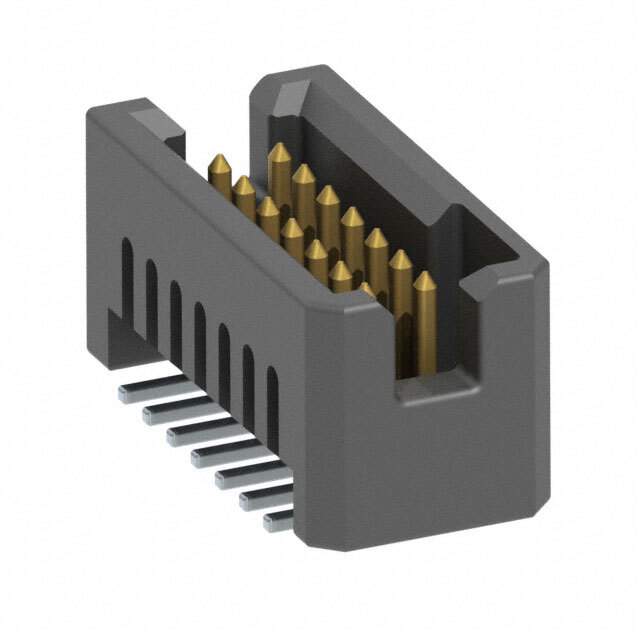

TFM-107-02-L-D

Name: TFM-107-02-L-D
Brand: Samtec Inc.
SKU: 796689
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TFM-107-02-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050 X .050 MICRO STRIPS
Datasheet	TFM-107-02-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	Tiger Eye TFM
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD
Termination	Solder
Contact Length - Mating	0.131" (3.33mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15μin (0.38μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	2.9A per Contact
Voltage Rating	275VAC
Win Source Part Number	796689-TFM-107-02-L-D
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian TFM-107-02-L-D CAD Model

Alternative Products

Description

The Tiger Eye TFM series is a high-density connector designed for board to board or cable connections from Tiger Eye.

Positions: 14 (loaded)
Rows: 2
Shrouding: Shrouded - 4 wall
Mounting: Surface mount
Contact Material: Phosphor bronze
Contact Length: 0.131 inches
Insulation Material: Liquid crystal polymer (LCP)
Insulation Height: 0.220 inches
Pitch: 0.050 inches
Mating Contact Finish: Gold (15.0μin)
Post Contact Finish: Tin
Voltage Rating: 275VAC
Current Rating: 2.9A per contact
Applications: High-density and high-speed board to board or cable connections
