Same model may have multiple batches, images only for reference.

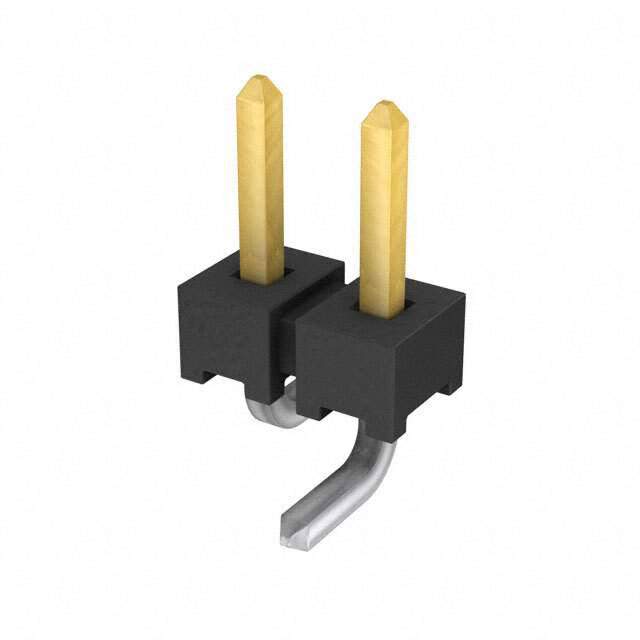

TMM-102-01-F-S-SM Real Image
Same model may have multiple batches, images only for reference.

TMM-102-01-F-S-SM

Part No TMM-102-01-F-S-SM
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description 2MM TERMINAL STRIP / Conn Unshrouded Header HDR 2 POS 2mm Solder ST Top Entry SMD Bulk
Datasheet
TMM-102-01-F-S-SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series TMM
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Contact Length - Mating 0.126" (3.20mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3μin (0.08μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3.2A per Contact
Win Source Part Number 797263-TMM-102-01-F-S-SM
Popularity Medium
Supply and Demand Status Limited
Family Name TMM
Introduction Date September 18, 2001
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TMM-102-01-F-S-SM CAD Model

Description

The Samtec Inc. 797263-TMM-102-01-F-S-SM is a Samtec Inc. medium-popularity electronic component that belongs to the TMM series.

  • Contact Type: male pin
  • Shrouding: unshrouded
  • ECCN: EAR99
  • Manufactured In: China, Costa Rica, Malaysia, Singapore, Taiwan, the United States of America, and Vietnam
