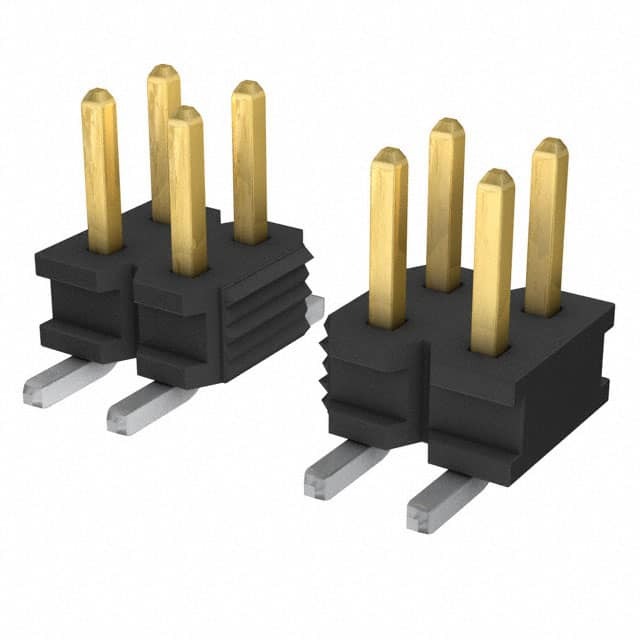

Same model may have multiple batches, images only for reference.

TMMH-105-01-F-DV

Name: TMMH-105-01-F-DV
Brand: Samtec Inc.
SKU: 937067
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMMH-105-01-F-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 2MM / Connector Header Surface Mount 10 position 0.079" (2.00mm)
Datasheet	TMMH-105-01-F-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMMH
Package	Tube
Product Status	Active
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Insulation Height	0.079" (2.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TMMH-105
Standard Package	57 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	937067-TMMH-105-01-F-DV
Ultra Librarian 3D Model	Ultra Librarian TMMH-105-01-F-DV CAD Model

Alternative Products

Description

The TMMH-105-01-F-DV is a male pin header connector from Samtec Inc.

Series: TMMH
Positions: 10
Header Type: Cuttable Header
Termination: Solder
Fastening Type: Push-Pull
Mounting: Surface Mount
Contact Material: Phosphor Bronze
Contact Finish: Gold
Insulation Material: Black Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Pitch: 0.079" (2.00mm)
Contact Length: 0.126" (3.20mm)
Temperature Range: -55°C to 125°C
Application: Board to Board or Cable
Package: Tube
Pieces per Package: 57
Prop 65: Compliant
