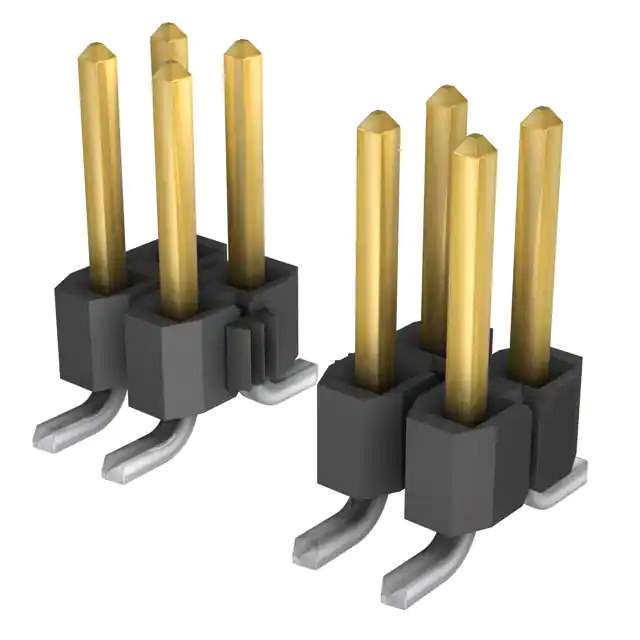

The TSM-108-01-LM-DV-P-TR is a male pin header connector from Samtec Inc. It is part of the TSM series and has 16 positions.

• Series: TSM
• Positions: 16
• Features: pick and place design
• Mounting: surface mount
• Termination: solder
• Fastening: push-pull
• Contact Material: phosphor bronze
• Contact Finish: gold
• Insulation Material: black liquid crystal polymer (LCP), UL94 V-0
• Pitch: 0.100" (2.54mm)
• Contact Length: 0.230" (5.84mm)
• Temperature Range: -55°C to 125°C
• Applications: board to board or cable
• Packaging: tape and reel, 150 pieces per package
• Status: active
• Compliance: California Prop 65
