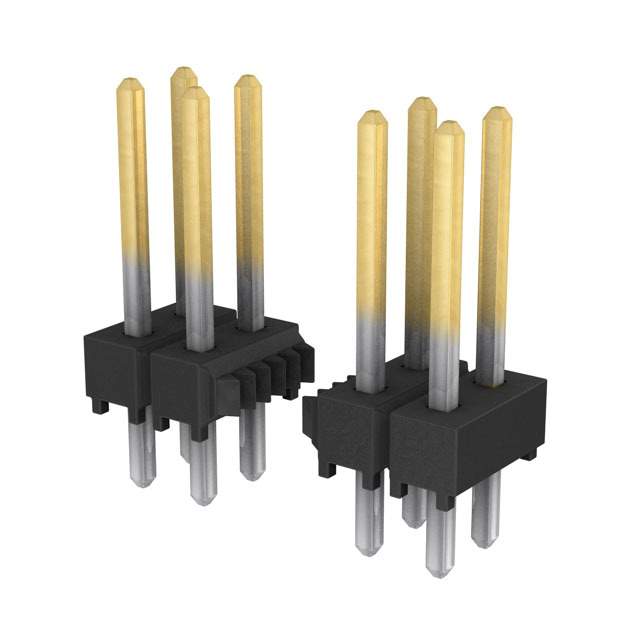

TSW-121-14-L-D

Name: TSW-121-14-L-D
Brand: Samtec Inc.
SKU: 1026791
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSW-121-14-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 42POS 2.54MM / Connector Header Through Hole 42 position 0.100" (2.54mm)
Datasheet	TSW-121-14-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSW
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	42
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.320" (8.13mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.530" (13.46mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSW-121
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1054-21
Standard Package	1
Win Source Part Number	1026791-TSW-121-14-L-D
Ultra Librarian 3D Model	Ultra Librarian TSW-121-14-L-D CAD Model

Alternative Products

Description

The TSW series 1026791-TSW-121-14-L-D connector from Samtec Inc. is a header-type connector with male pins.

Product Name: 1026791-TSW-121-14-L-D
Series: TSW
Manufacturer: Samtec Inc.
Connector Type: Header
Pin Type: Male
Pitch: 0.100 inches (2.54mm)
Positions: 42
Rows: 2
Insulation Material: Black polybutylene terephthalate (PBT)
Flammability Rating: UL94 V-0
Fastening Type: Push-Pull
Mounting Type: Through Hole
Contact Finish (Mating Side): Gold, 10.0µin (0.25µm)
Contact Finish (Post Side): Tin
Contact Material: Phosphor Bronze
Application: Board-to-Board or Cable
Overall Contact Length: 0.530 inches (13.46mm)
