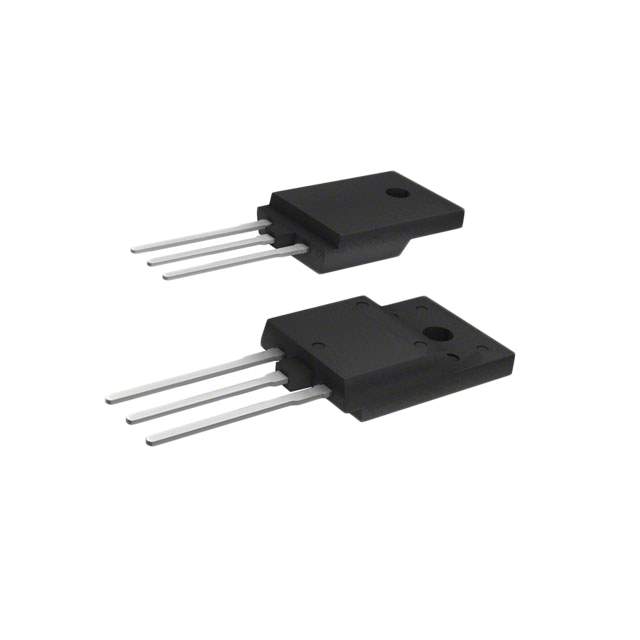

2SA1909 Real Image
Same model may have multiple batches, images only for reference.

2SA1909

Part No 2SA1909
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS PNP 140V 10A TO3PF
Datasheet
2SA1909 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type PNP
Current - Collector (Ic) (Maximum) 10A
Voltage - Collector Emitter Breakdown (Maximum) 140V
Vce Saturation (Maximum) @ Ib, Ic 500mV @ 500mA, 5A
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 50 @ 3A, 4V
Power - Max 80W
Frequency - Transition 20MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PF
Win Source Part Number 762405-2SA1909
Popularity Medium
Supply and Demand Status Limited
Family Name 2SA1909
Introduction Date July 07, 1999
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 2SA1909 CAD Model

Description

The 2SA1909, manufactured by Sanken, is a PNP transistor.

  • Maximum Power: 80W
  • Frequency Transition: 20MHz
  • Package: TO-3P-3 full pack
  • Mounting Style: Through hole
  • Current Rating: 10A
  • Voltage Rating: 140V
  • Vce Saturation: 500mV @ 500mA, 5A
  • DC Current Gain: 50 @ 3A, 4V
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2026
