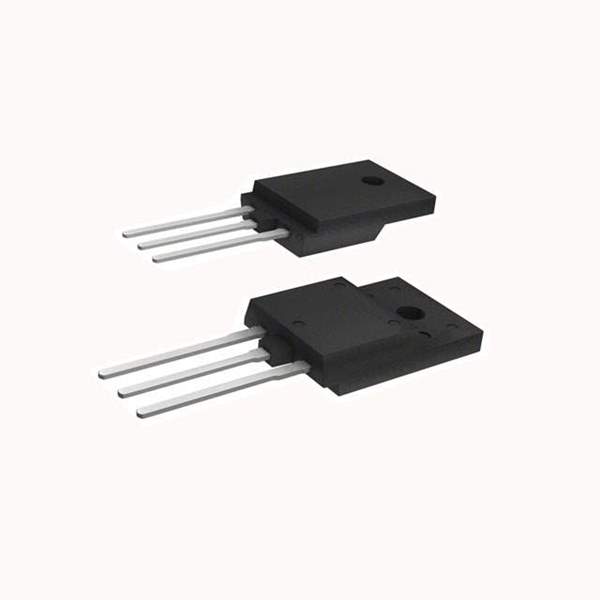

2SD2045

Name: 2SD2045
Brand: Sanken
SKU: 418902
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2SD2045
Manufacturer	Sanken
Catalog	Transistors (BJT) - Single
Description	TRANS NPN DARL 120V 6A TO3PF
Datasheet	2SD2045 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Sanken
Packaging	Bulk
Status	Active
Transistor Polarity	NPN - Darlington
Maximum Current Collector	6A
VCEO Maximum Collector-Emitter Breakdown Voltage	120V
Max Vce (sat)	1.5V @ 3mA, 3A
Collector Cut-off Current(Max)	10μA (ICBO)
Typical Gain (hFE) (Min)	2000 @ 3A, 2V
Maximum Power Dissipation	50W
Frequency - Transition	50MHz
Temperature Range - Operating	150°C (TJ)
Mounting	Through Hole
Case / Package	TO-3PF
Win Source Part Number	1004583-2SD2045
Popularity	Medium
Supply and Demand Status	Balance
Application Field	Used in Clock & Timing, Automation & Process Control, Sensing & Instrumentation, Test & Measurement
Ultra Librarian 3D Model	Ultra Librarian 2SD2045 CAD Model

Alternative Products

Description

The Sanken 2SD2045 is a high power NPN Darlington transistor manufactured by Sanken.

Supply and Demand Status: Balanced
Application: Discrete semiconductor products
Maximum Collector Current: 6A
Collector-Emitter Breakdown Voltage: 120V
Applications: Clock and timing, automation and process control, sensing and instrumentation, and test and measurement.
