Same model may have multiple batches, images only for reference.

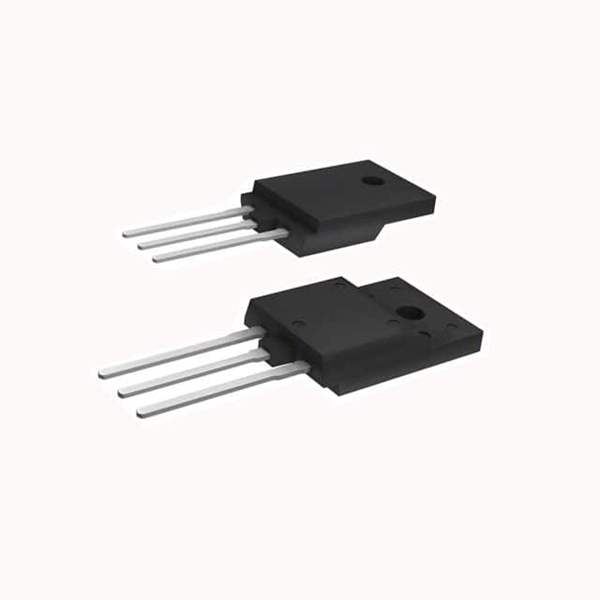

MGD623N
Same model may have multiple batches, images only for reference.

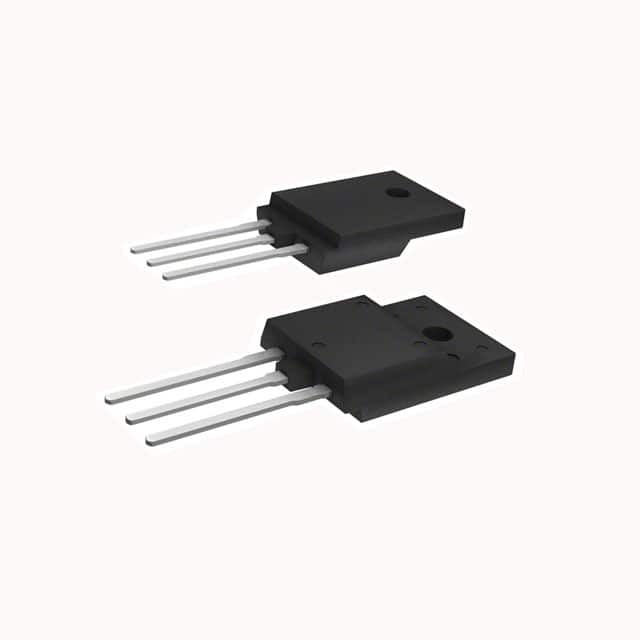

MGD623N

Part No MGD623N
Manufacturer Sanken
Catalog IGBTs - Single
Description IGBT 600V 50A 150W TO3P / IGBT 600 V 50 A 150 W Through Hole TO-3P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr Sanken
Package Bulk
Product Status Active
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 50 A
Current - Collector Pulsed (Icm) 100 A
Vce(on) (Max) @ Vge, Ic 2.3V @ 15V, 50A
Power - Max 150 W
Input Type Standard
Td (on/off) @ 25°C 75ns/300ns
Test Condition 300V, 50A, 39Ohm, 15V
Reverse Recovery Time (trr) 300 ns
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-3P-3 Full Pack
Supplier Device Package TO-3P
Base Product Number MGD623
Standard Package 510 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 884583-MGD623N
Ultra Librarian 3D Model Ultra Librarian MGD623N CAD Model

Description

The MGD623N is a single IGBT used in power management applications.

  • Category: discrete semiconductor products
  • Application: switch
  • Maximum Collector-Emitter Breakdown Voltage: 600V
  • Maximum Collector Current: 50A
  • Pulsed Collector Current: 100A
  • On-State Voltage Drop: 2.3V @ 15V and 50A
  • Reverse Recovery Time: 300ns
  • Mounting Type: through hole
  • Package: TO-3P-3 Full Pack
  • Maximum Operating Temperature: 150°C
  • Product Status: active
