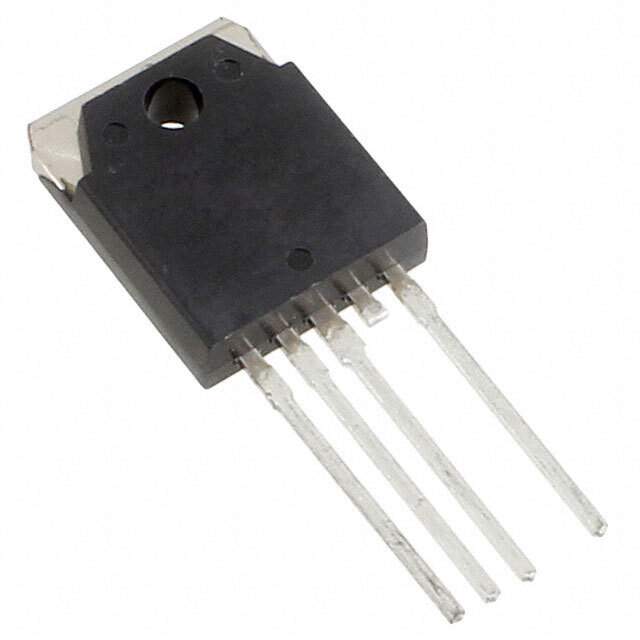

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type NPN - Darlington
Current - Collector (Ic) (Maximum) 15A
Voltage - Collector Emitter Breakdown (Maximum) 160V
Vce Saturation (Maximum) at Ib, Ic 2V at 10mA, 10A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 5000 at 10A, 4V
Maximum Power 160W
Temperature Range - Operating 150°C
Mounting Style Through Hole
Manufacturer Package TO-3P-5
Supplier Device Package TO-3P-5L
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1260751-STD03N
Manufacturer Homepage www.allegromicro.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STD03N CAD Model

Description

The Sanken STD03N is a Darlington NPN transistor that is ideal for use in various applications such as power supplies, motor control, and audio amplifiers.

  • Maximum Collector Current: 15A
  • Maximum Collector-Emitter Voltage: 160V
  • Package: TO-3P-5L
  • Mounting Type: Through-Hole
  • Collector Cutoff Current: 100μA
  • DC Current Gain: 5000 @ 10A and 4V
  • Vce Saturation: 2V @ 10mA, 10A
  • Pack Quantity: 30
  • MSL Level: 1 (Unlimited Shelf Life)
