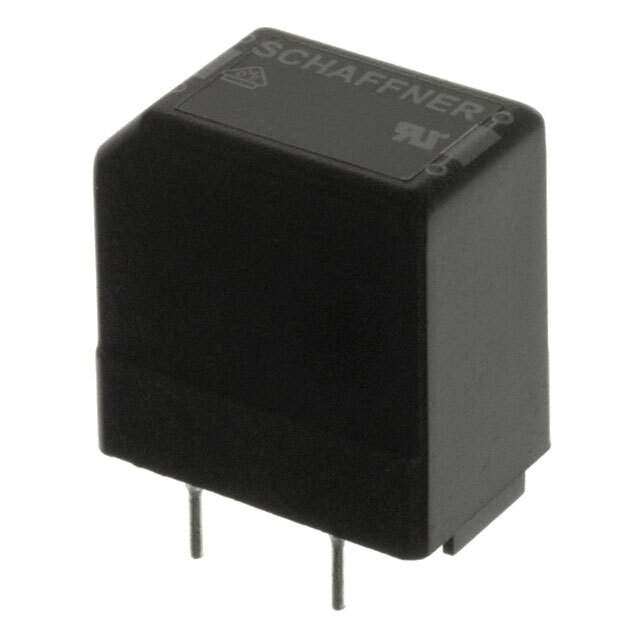

RN214-2.5-02-3M3 Real Image
Same model may have multiple batches, images only for reference.

RN214-2.5-02-3M3

Part No RN214-2.5-02-3M3
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 3.3MH 2.5A 2LN TH  /  3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2.5A DCR 63mOhm (Typ)
Datasheet
RN214-2.5-02-3M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.3 mH @ 10 kHz
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 63mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) 0.996" (25.30mm)
Package / Case Vertical, 4 PC Pin
Base Product Number RN214
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 816555,817-2186
Standard Package 500
Win Source Part Number 1000567-RN214-2.5-02-3M3
Ultra Librarian 3D Model Ultra Librarian RN214-2.5-02-3M3 CAD Model

Description

The RN214-2.5-02-3M3 is a common mode choke filter from Schaffner EMC Inc. designed for use in power line applications.

  • Voltage Rating: 300V
  • Current Rating: 2.5A
  • Mounting Type: Through-Hole
  • Package: Vertical, 4 PC Pin
  • Inductance: 3.3 mH @ 10 kHz
  • DC Resistance: 63mOhm (Typ)
  • Environment: Industrial
  • Ingress Protection: IP68/IP69K
  • Standard Package: 500
