Same model may have multiple batches, images only for reference.

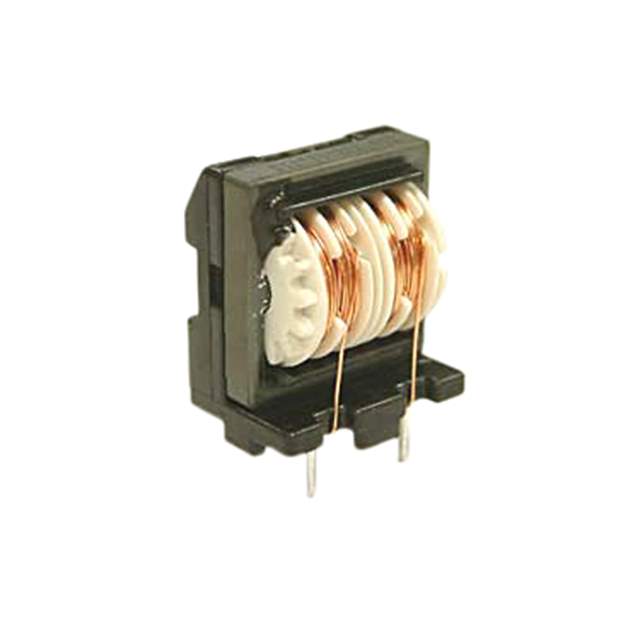

ET2432-024 Real Image
Same model may have multiple batches, images only for reference.

ET2432-024

Part No ET2432-024
Manufacturer Triad Magnetics
Catalog Common Mode Chokes
Description CMC 3.2MH 2A 2LN TH ESD / 3.2 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2A DCR 200mOhm
Datasheet
ET2432-024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Triad Magnetics
Series ET
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.2 mH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 200mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -20°C ~ 105°C
Approval Agency CSA, IEC, UL
Features ESD
Mounting Type Through Hole
Dimension 0.767" L x 1.040" W (19.48mm x 26.42mm)
Height (Max) 1.220" (31.00mm)
Package / Case Vertical, 4 PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 237-2105
Standard Package 1
Win Source Part Number 989238-ET2432-024
Ultra Librarian 3D Model Ultra Librarian ET2432-024 CAD Model

Description

The ET series common mode choke is a high-quality filter designed to provide superior ESD protection.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 2A
  • Application: Ideal for use in power line filtering applications
  • Mounting Style: Through-hole
  • Package: Vertical, 4 PC pin
  • Height: 1.220 inches (31.00mm)
  • Dimension: 0.767 inches (19.48mm) in length and 1.040 inches (26.42mm) in width
  • Lines: 2
  • Inductance: 3.2 mH @ 1 kHz
  • DC Resistance (DCR): 200mOhm maximum
  • Approvals: CSA, IEC, and UL
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8548.00.0000
  • Manufacturer: Triad Magnetics
  • Also Known As: 237-2105
