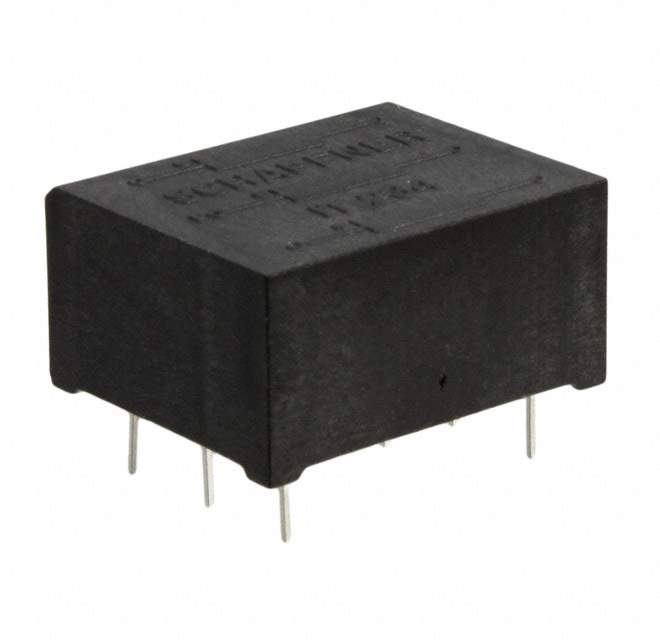

IT233 Real Image
Same model may have multiple batches, images only for reference.

IT233

Part No IT233
Manufacturer Schaffner EMC Inc.
Catalog Pulse Transformers
Description XFRMR PULSE 1:1:1 DL 3MH .25A / 3mH Data/Voice Coupling Pulse Transformer 1:1:1 Through Hole
Datasheet
IT233 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer Schaffner EMC Inc.
Packaging Tray
Transformer Type Data/Voice Coupling
Inductance 3mH
Mounting Through Hole
Size / Dimension 1.063" L x 0.886" W (27.00mm x 22.50mm)
Temperature Range - Operating -25°C ~ 70°C
Weight 0.46 oz (13.11 g)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 22-446,817-1503,IT 233,800051
Standard Package 100
Win Source Part Number 1328492-IT233
Ultra Librarian 3D Model Ultra Librarian IT233 CAD Model

Description

The 1328492-IT233 pulse transformer from Schaffner EMC Inc. is a high-quality and reliable component designed for data/voice coupling.

  • Size/Dimension: 1.063" L x 0.886" W (27.00mm x 22.50mm)
  • Inductance: 3mH
  • Package: tray
  • Standard Package: 100
  • Mounting: through-hole
  • Weight: 0.46 oz (13.11 g)
  • Operating Temperature: -25°C ~ 70°C
  • ROHS3 Compliant: Yes
  • REACH Regulations: unaffected
