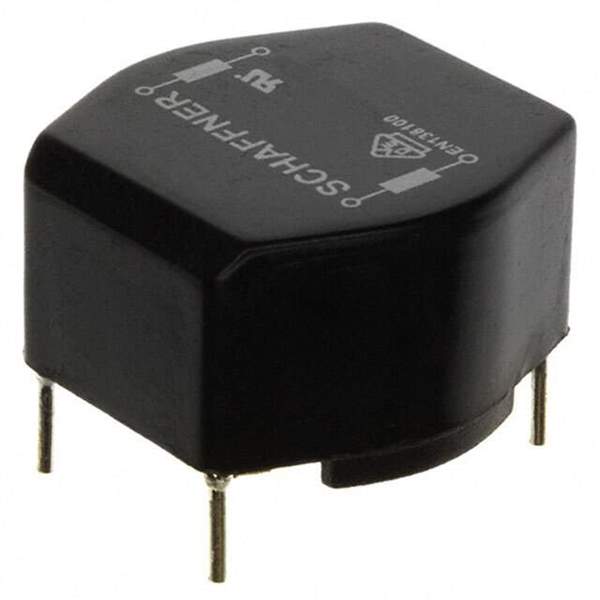

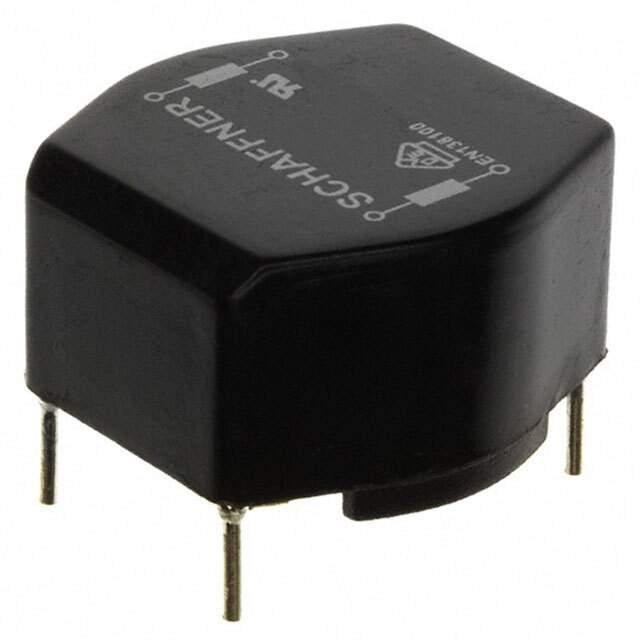

RN114-0.8-02-27M Real Image
Same model may have multiple batches, images only for reference.

RN114-0.8-02-27M

Part No RN114-0.8-02-27M
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 27MH 800MA 2LN TH / 27 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 800mA DCR 500mOhm (Typ)
Datasheet
RN114-0.8-02-27M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 27 mH @ 10 kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 500mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Size / Dimension 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) 0.531" (13.50mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number RN114
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
California Prop 65 Warning Information
Win Source Part Number 1349687-RN114-0.8-02-27M
Ultra Librarian 3D Model Ultra Librarian RN114-0.8-02-27M CAD Model

Description

The 1349687-RN114-0.8-02-27M is a common mode choke designed for power line filtering.

  • Inductance: 27 mH @ 10 kHz
  • Voltage Rating: 300V AC
  • Current Rating: 800mA
  • Maximum DC Resistance: 500mOhm
  • Mounting Type: Through-hole
  • Package/Case: Horizontal, 4 PC pin
  • Material: Plastic
  • Operating Temperature Range: -40°C to 100°C
  • Package: Tube
  • Standard Package: 25
