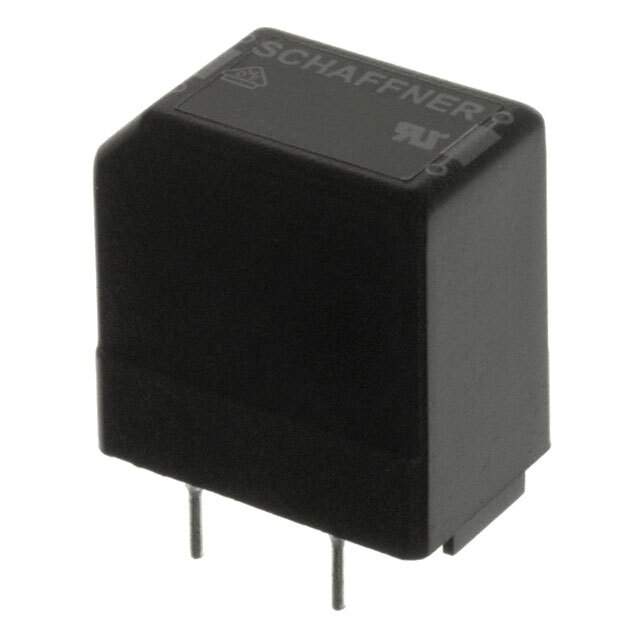

RN214-1.5-02-6M8

Name: RN214-1.5-02-6M8
Brand: Schaffner EMC Inc.
SKU: 1328229
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	RN214-1.5-02-6M8
Manufacturer	Schaffner EMC Inc.
Catalog	Common Mode Chokes
Description	CMC 6.8MH 1.5A 2LN TH / 6.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 123mOhm (Typ)
Datasheet	RN214-1.5-02-6M8 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Manufacturer	Schaffner EMC Inc.
Packaging	Tube
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	6.8 mH @ 10 kHz
Current Rating (Max)	1.5A
DC Resistance (DCR) (Max)	123mOhm (Typ)
Voltage Rating - AC	300V
Temperature Range - Operating	-40°C ~ 100°C
Approval Agency	ENEC, UR, VDE
Mounting	Through Hole
Size / Dimension	0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max)	0.996" (25.30mm)
Case / Package	Vertical, 4 PC Pin
Base Product Number	RN214
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Part Number	817-2183
Standard Package	25
Win Source Part Number	1328229-RN214-1.5-02-6M8
Ultra Librarian 3D Model	Ultra Librarian RN214-1.5-02-6M8 CAD Model

Alternative Products

Description

The manufacturer is Schaffner EMC Inc. and the Win Source Part Number is 1328229-RN214-1.5-02-6M8.

Category: Filters, Common Mode Chokes
Packaging: Tube
Voltage Rating - AC: 300V
Size / Dimension: 0.906" L x 0.610" W (23.00mm x 15.50mm)
Current Rating (Max): 1.5A
Standard Package: 25
Mounting: Through hole
Filter Type: Power line
Height (Max): 0.996" (25.30mm)
Lines: Two
Inductance @ Frequency: 6.8 mH @ 10 kHz
DC Resistance (DCR) (Max): 123mOhm (Typ)
Temperature Range - Operating: -40°C ~ 100°C
Case / Package: Vertical, 4 PC Pin
