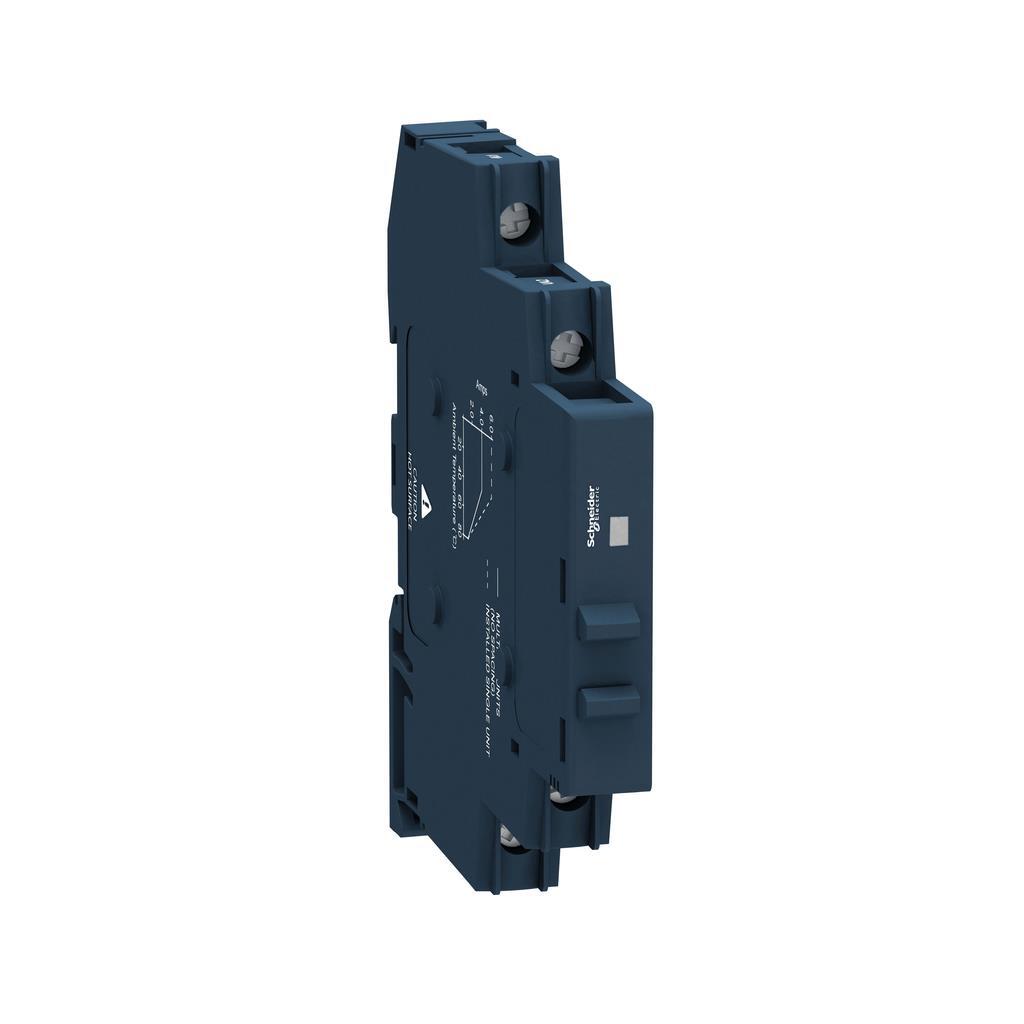

SSM1D36BD Schneider Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SSM1D36BD

Part No SSM1D36BD
Manufacturer Schneider Electric
Catalog Solid State Relays
Description SSR RELAY SPST-NO 6A 1-100V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type DIN Rail
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 4 ~ 32VDC
Voltage - Load 1 V ~ 100 V
Load Current 6 A
On-State Resistance (Max) 100 mOhms
Termination Style Screw Terminal
Temperature Range - Operating -30°C ~ 80°C
Case / Package Module
Approval Agency CSA, UL
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1570474-SSM1D36BD
Ultra Librarian 3D Model Ultra Librarian SSM1D36BD CAD Model
