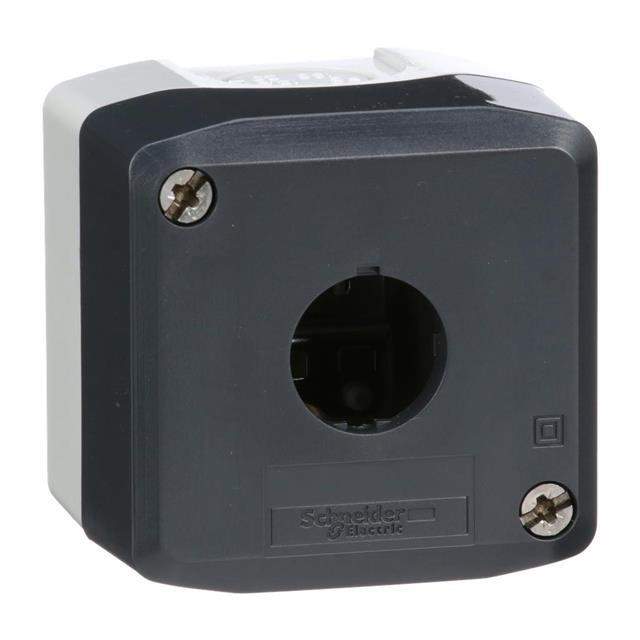

The XALD01H7 is a Harmony XALD control station enclosure from Schneider Electric. It's a part of the Harmony range of push buttons, switches, and pilot lights, designed for industrial control applications. The XALD01H7 enclosure is specifically designed to house a single control or signaling unit, providing protection and a mounting point in various industrial environments.

Applications

• Industrial Control Panels: Mounting single push buttons or switches for machine control.
• Operator Interfaces: Providing a dedicated control point for specific machine functions.
• Remote Control Stations: Enabling control of equipment from a distance.
• Manufacturing Equipment: Integrating control elements directly onto machinery.
• Automation Systems: Housing control devices in automated production lines.

Features

• Single Unit Enclosure: Designed to accommodate one Harmony-style control or signaling unit (22mm diameter).
• Polycarbonate Construction: Made from durable polycarbonate material for impact resistance and protection against environmental factors.
• IP66 Protection: Offers a high degree of protection against dust and water ingress, suitable for harsh environments.
• NEMA 4X Rating: Provides corrosion resistance and protection against hose-directed water and the ingress of water during prolonged submersion at a limited depth.
• Flush Mounting: Designed for flush mounting, providing a clean and professional appearance.
• Yellow Color: Standard yellow color for high visibility and easy identification.
• Compact Design: Small footprint for space-saving installation.

Benefits

• Durable Protection: Polycarbonate construction and IP66/NEMA 4X ratings protect control units from damage.
• Easy Installation: Simple mounting design allows for quick and easy installation.
• Improved Safety: Protects operators from electrical hazards.
• Enhanced Visibility: Yellow color ensures easy identification of the control station.
• Standardized Design: Compatible with a wide range of Harmony control and signaling units.

Technical Specifications (Typical):

• Material: Polycarbonate
• Color: Yellow
• Number of Units: 1
• Protection Rating: IP66, NEMA 4X
• Mounting: Flush
• Operating Temperature: -25°C to +70°C
• Dimensions: Varies depending on the specific model (refer to datasheet)
