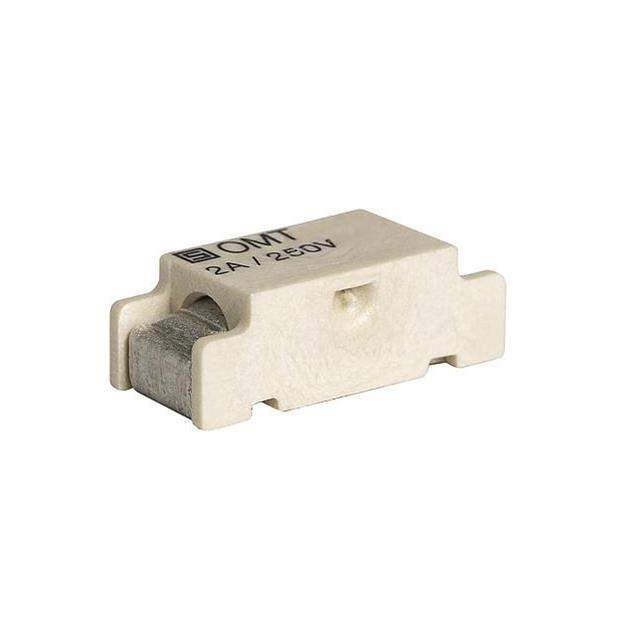

3403.0116.24 Real Image1 3403.0116.24 Real Image2
Same model may have multiple batches, images only for reference.
3403.0116.24 Real Image1 3403.0116.24 Real Image2
3403.0116.24 Real Image1 3403.0116.24 Real Image2
Same model may have multiple batches, images only for reference.

3403.0116.24

Part No 3403.0116.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 1A 250VAC 2SMD / 1 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
Datasheet
3403.0116.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Schurter Inc.
Series OMT
Package Tape & Reel
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 2-SMD, J-Lead
Breaking Capacity @ Rated Voltage 100A
Melting I2t 0.99
Approval Agency cURus
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.433" L x 0.181" W x 0.154" H (11.00mm x 4.60mm x 3.90mm)
Base Product Number 3403.0116
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 2,000 pcs
Win Source Part Number 1380768-3403.0116.24
Ultra Librarian 3D Model Ultra Librarian 3403.0116.24 CAD Model

Description

The 3403.0116.24 is a fuse manufactured by Schurter Inc.

  • Series: OMT
  • Application: Circuit Protection
  • Mounting: Board Mountable
  • Voltage Rating: 250V AC
  • Response Time: Slow Blow
  • Breaking Capacity: 100A
  • Package: Tape and Reel
  • Mounting: Surface Mountable
