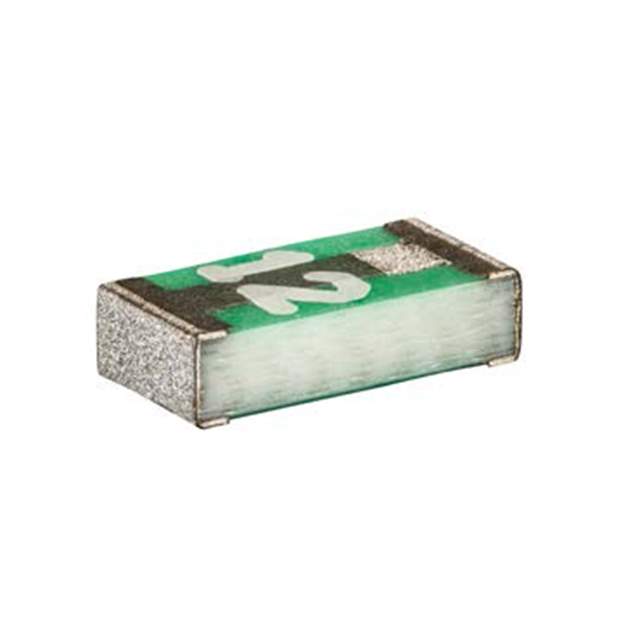

3413.0327.24 Real Image
Same model may have multiple batches, images only for reference.

3413.0327.24

Part No 3413.0327.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 8A 32VAC 63VDC 1206 / 8 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
3413.0327.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series UST 1206
Package Tape & Reel (TR)
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 8 A
Voltage Rating - AC 32 V
Voltage Rating - DC 63 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 100A
Melting I2t 14
Approval Agency cURus
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
DC Cold Resistance 0.0063 Ohms
Base Product Number 3413.0327
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 5,000
Win Source Part Number 1110260-3413.0327.24
Ultra Librarian 3D Model Ultra Librarian 3413.0327.24 CAD Model

Description

The UST 1206 series is a fuse that comes in a tape & reel (TR) package from SCHURTER Inc.

  • Voltage Rating: 32 V AC and 63 V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 100A @ Rated Voltage
  • DC Cold Resistance: 0.0063 Ohms
  • Current Rating: 8 A
  • Dimension: 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
  • Operating Temperature Range: -55°C ~ 90°C
  • RoHS: Non-Compliant
  • ECCN: EAR99
  • REACH: Unaffected
