Same model may have multiple batches, images only for reference.

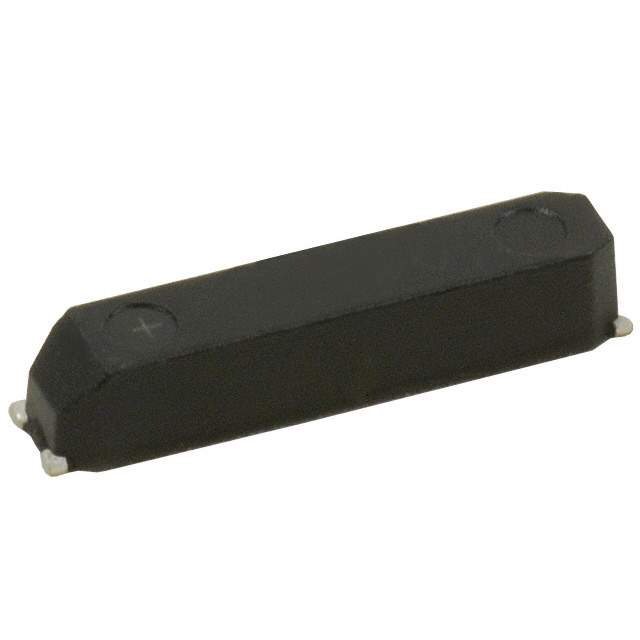

SSPT7F-9PF20-R Real Image
Same model may have multiple batches, images only for reference.

SSPT7F-9PF20-R

Part No SSPT7F-9PF20-R
Manufacturer Seiko Instruments
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 9PF SMD  /  32.768 kHz ±20ppm Crystal 9pF 65 kOhms 4-SMD, Flat Leads
Datasheet
SSPT7F-9PF20-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Seiko Instruments
Series SSP-T
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR (Equivalent Series Resistance) 65 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, Flat Leads
Dimension 0.264" L x 0.055" W (6.70mm x 1.40mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Other Names 728-SSPT7F-9PF20-RTR,728-SSPT7F-9PF20-RDKR,728-SSPT7F-9PF20-RCT
Standard Package 3,000
Win Source Part Number 1096316-SSPT7F-9PF20-R
Ultra Librarian 3D Model Ultra Librarian SSPT7F-9PF20-R CAD Model

Description

The Seiko Instruments SSP-T kHz crystal is a tuning fork type electronic component with a frequency of 32.768 kHz.

  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 9pF
  • Package: 4-SMD, flat leads
  • Operating Temperature Range: -40°C to 85°C
  • Package: tape and reel package
