Same model may have multiple batches, images only for reference.

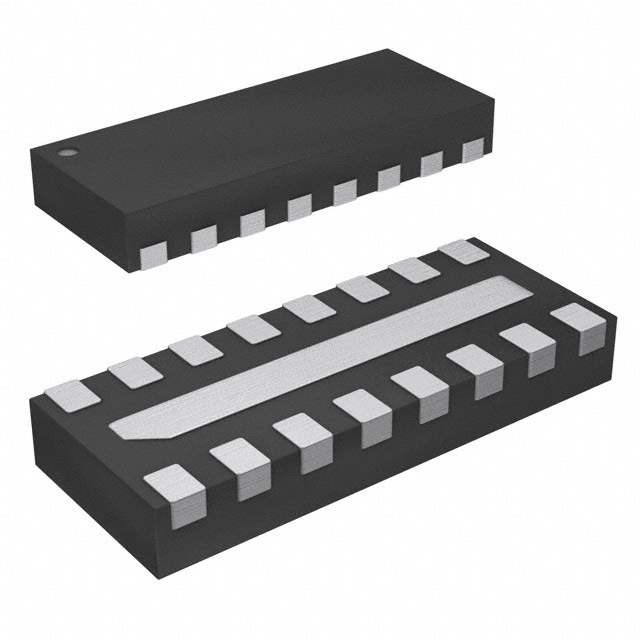

ECLAMP2378K.TCT Real Image
Same model may have multiple batches, images only for reference.

ECLAMP2378K.TCT

Part No ECLAMP2378K.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/11PF SMD
Datasheet
ECLAMP2378K.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Attenuation Value 30dB @ 1.8GHz to 2.5GHz
Resistance - Channel (Ohms) 100
Values R = 100 Ohms, C = 11pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.130" L x 0.051" W (3.30mm x 1.30mm)
Height 0.022" (0.55mm)
Win Source Part Number 015151-ECLAMP2378K.TCT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ECLAMP2378K.TCT CAD Model

Description

Overview

The ECLAMP2378K.TCT is crafted to deliver superior ESD protection for sensitive electronic interfaces, optimizing performance and durability.

Features and Benefits

  • High ESD Withstand Voltage: Protects against high-voltage discharges.
  • Minimal Insertion Loss: Maintains optimal data flow.
  • Ultra-Low Leakage Current: Preserves battery life in portable devices.
  • Cost-Effective Solution: Provides affordable protection without compromising quality.

Applications

  • Telecommunications Equipment
  • Ethernet Ports
  • Set-Top Boxes
  • Automotive Infotainment Systems

Additional Details

The compact ECLAMP2378K.TCT is an excellent choice for applications requiring minimal power draw and maximum space efficiency, making it an asset in both consumer and industrial electronics.
