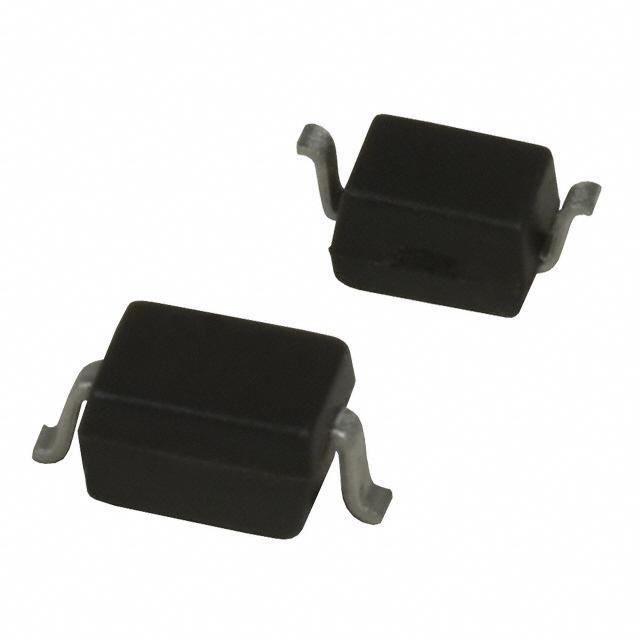

SD05.TCT Semtech Corporation SD05.TCT Real Image
Same model may have multiple batches, images only for reference.
SD05.TCT Semtech Corporation SD05.TCT Real Image
SD05.TCT Semtech Corporation SD05.TCT Real Image
Same model may have multiple batches, images only for reference.

SD05.TCT

Part No SD05.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 14.5VC SOD323
Datasheet
SD05.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 14.5V
Peak Pulse Current(Ippm) 24A (8/20μs)
Power Dissipation - Pd 350W
Applications General Purpose
Capacitance @ Frequency 350pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 028159-SD05.TCT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Consumer Electronics, Computers & Computer Peripherals, Portable Devices, Industrial
Ultra Librarian 3D Model Ultra Librarian SD05.TCT CAD Model

Description

The Semtech Corporation SD05.TCT is a zener type circuit protection diode designed for general-purpose use.

  • Mounting: SMD (SMT)
  • Channels: unidirectional, 1
  • Capacitance @ Frequency: 350pF @ 1MHz
  • Operating Temperature Range: -55°C to 125°C (TJ)
  • Case/Package: SOD-323
  • STAND-OFF voltage (Vwm): 5V (Max)
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 14.5V
  • Peak Pulse Current(Ippm): 24A (8/20μs)
  • Power Dissipation - Pd: 350W
  • Popularity: high, 89 pct.
  • Supply and Demand: sufficient
  • Applications: consumer electronics, computers & computer peripherals, portable devices, and industrial applications.
