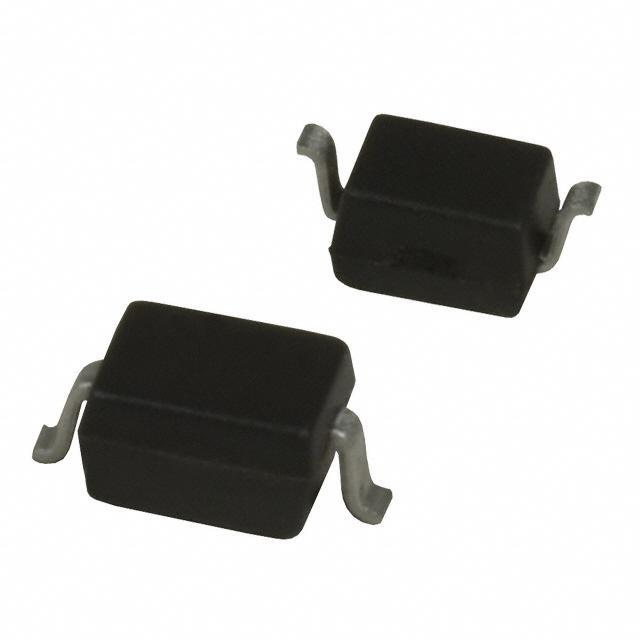

SD24C.TCT Semtech Corporation SD24C.TCT Real Image
Same model may have multiple batches, images only for reference.
SD24C.TCT Semtech Corporation SD24C.TCT Real Image
SD24C.TCT Semtech Corporation SD24C.TCT Real Image
Same model may have multiple batches, images only for reference.

SD24C.TCT

Part No SD24C.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Bi-Dir 24V 2-Pin SOD-323 T/R / TVS DIODE 24VWM 44VC SOD323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V (Max)
Minimum Breakdown Voltage 26.7V
Max Clamping Voltage 44V
Peak Pulse Current(Ippm) 8A (8/20μs)
Power Dissipation - Pd 350W
Applications General Purpose
Capacitance @ Frequency 50pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 028180-SD24C.TCT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SD24C
Introduction Date October 30, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SD24C.TCT CAD Model

Description

The Semtech Corporation 324296 is a high-popularity zener diode designed for general-purpose applications.

  • Mounting: SMD (SMT)
  • Channels: One bidirectional
  • Capacitance: 50pF @ 1MHz
  • Stand-off Voltage (Vwm): 24V (Max)
  • Case/Package: SOD-323
  • Power Dissipation: 350W
  • Halogen-Free: Compliant
