Same model may have multiple batches, images only for reference.

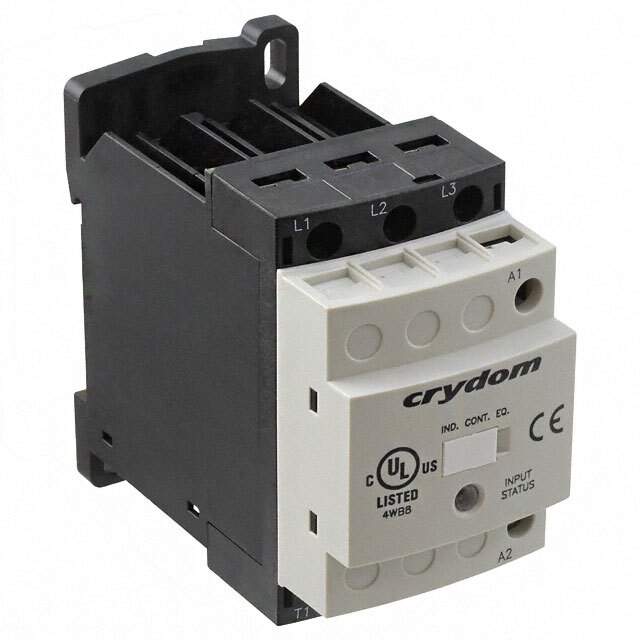

DRC3P48D4202 Real Image
Same model may have multiple batches, images only for reference.

DRC3P48D4202

Part No DRC3P48D4202
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description 480V 7.6A 24VAC/DC 2NO ZC 2L  /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Contactors (Solid State)
Mfr Sensata-Crydom
Series Solicon DRC
Package Bulk
Mounting Type Chassis Mount, DIN Rail
Circuit 3PST-NO (3 Form A)
Output Type AC, Zero Cross
Load Current 7.6 A
Voltage - Input 18 ~ 30VAC/DC
Voltage - Load 48 ~ 530V
Termination Style Screw Terminal
Package / Case Module
Base Product Number DRC3P48D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0080
Standard Package 10
Win Source Part Number 1168214-DRC3P48D4202
Ultra Librarian 3D Model Ultra Librarian DRC3P48D4202 CAD Model

Description

The Sensata-Crydom Solicon DRC series DRC3P48D4202 is a 3PST-NO (3 Form A) solid state relay with AC zero-cross output type.

  • Configuration: 3PST-NO (3 Form A)
  • Output Type: AC zero-cross
  • Load Current: 7.6 A
  • Voltage Load Range: 48 ~ 530V
  • Voltage Input Range: 18 ~ 30VAC/DC
  • Mounting: chassis or DIN rail
  • Package: module
  • Standard Package: 10
  • Win Source Part Number: 1168214
