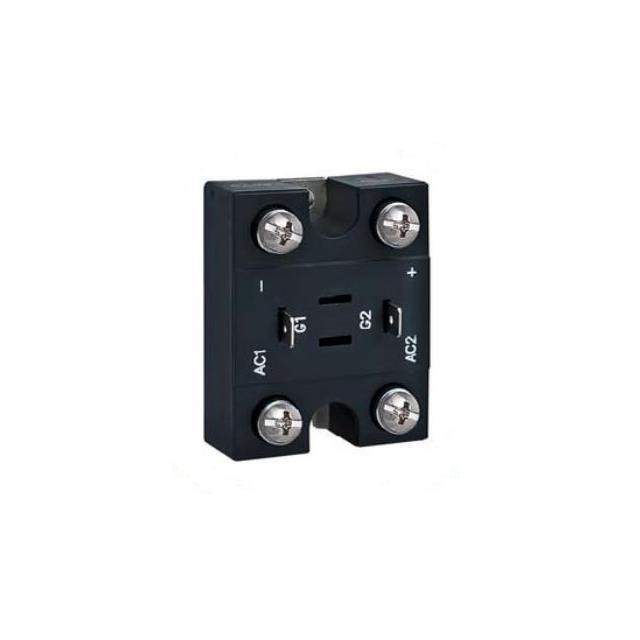

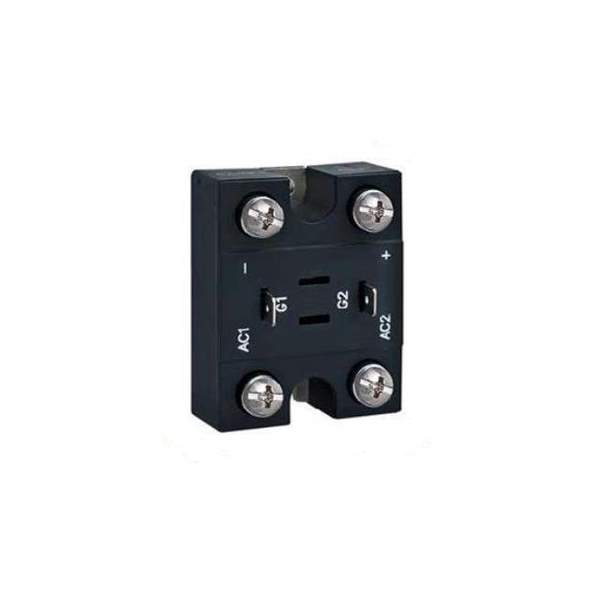

M5010013V Real Image
Same model may have multiple batches, images only for reference.

M5010013V

Part No M5010013V
Manufacturer Sensata-Crydom
Catalog SCRs - Single - Modules
Description M SERIES POWER MODULE / SCR Module 800 V Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Mfr Sensata-Crydom
Series M50
Package Bulk
Structure Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 800 V
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1500A @ 60Hz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Base Product Number M5010013
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names 2266-M5010013V
Standard Package 10
Win Source Part Number 1218089-M5010013V
Ultra Librarian 3D Model Ultra Librarian M5010013V CAD Model

Description

The Sensata-Crydom M5010013V is a thyristor module that is designed for single phase bridge applications.

  • Voltage Off State: 800 V
  • Voltage Gate Trigger (Vgt) (Max): 3 V
  • Current Gate Trigger (Igt) (Max): 150 mA
  • Current Non Rep. Surge 50, 60Hz (Itsm): 1500A @ 60Hz
  • Package: module
  • Operating Temperature: -40°C to 125°C (TJ)
  • Category: discrete semiconductor products
  • Series: M50
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • HTSUS: 8541.30.0080
  • Other Names: 2266-M5010013V
  • Base Product Number: M5010013
