Same model may have multiple batches, images only for reference.

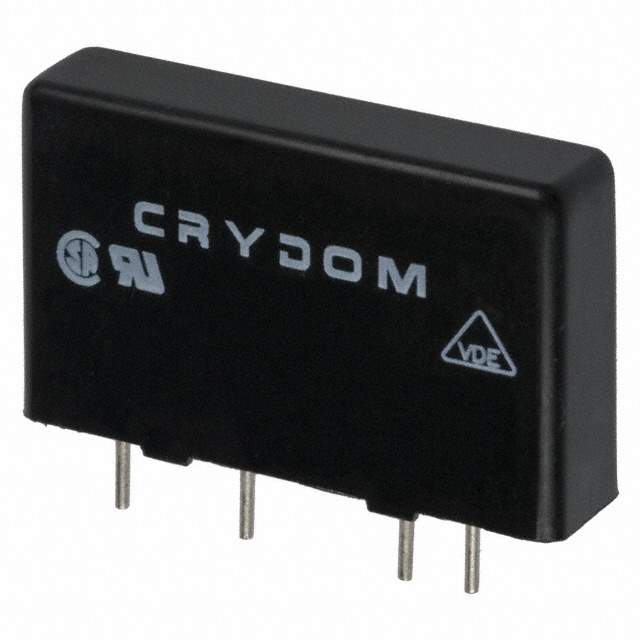

MCX380D5 Real Image
Same model may have multiple batches, images only for reference.

MCX380D5

Part No MCX380D5
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description SSR RELAY SPST-NO 5A 48-530V / Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Sensata-Crydom
Series MCX
Package Bulk
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 4 ~ 15VDC
Voltage - Load 48 V ~ 530 V
Load Current 5 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Base Product Number MCX380
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0055
California Prop 65 Warning Information
Win Source Part Number 1339974-MCX380D5
Ultra Librarian 3D Model Ultra Librarian MCX380D5 CAD Model

Description

The MCX380D5 is a solid state relay belonging to the MCX series from Sensata-Crydom.

  • Termination Style: PC pin
  • Package: Bulk
  • Standard Package: 25
  • Voltage Input: 4 ~ 15VDC
  • Output Type: AC zero cross
  • Circuit: Single pole single throw normally open
  • Load Current: 5 A
  • Voltage Load: 48 V to 530 V
  • Mounting Type: Through-hole
  • Package/Case: 4-SIP
  • Supplier Device Package: 4-SIP
