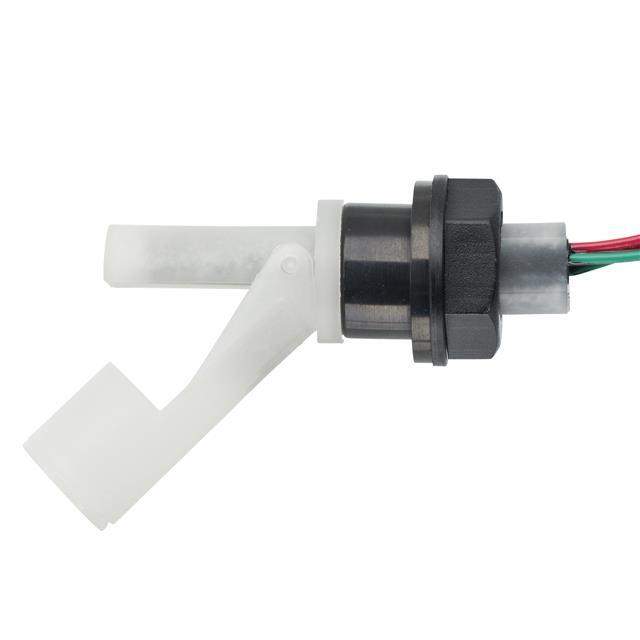

TSF74Y100DN Real Image1 TSF74Y100DN Real Image2
Same model may have multiple batches, images only for reference.
TSF74Y100DN Real Image1 TSF74Y100DN Real Image2
TSF74Y100DN Real Image1 TSF74Y100DN Real Image2
Same model may have multiple batches, images only for reference.

TSF74Y100DN

Part No TSF74Y100DN
Manufacturer Sensata-Cynergy3
Catalog Float, Level Sensors
Description SENSOR LEVEL SWITCH SGL / Liquid, Temperature Level Sensor Switch (Single Float) SPST-NC/NO Output Panel Mount, M16x2 Thread
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Float, Level Sensors
Mfr Sensata-Cynergy3
Series TSF70
Package Bulk
Type Liquid, Temperature
Output Type Switch (Single Float)
Output Configuration SPST-NC/NO
Current 600 mA
Minimum Liquid Specific Gravity 0.85
Switch Actuation Level 0.3149", 0.4641" (8mm, 20mm)
Mounting Type Panel Mount, M16x2 Thread
Material - Housing & Prism Polypropylene (PP)
Temperature Range - Operating -20°C ~ 100°C
Voltage Rating 120VDC, 240VAC
Base Product Number TSF74Y100
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Standard Package 5 pcs
Win Source Part Number 1383733-TSF74Y100DN
Ultra Librarian 3D Model Ultra Librarian TSF74Y100DN CAD Model

Description

The TSF70 series float level sensor is designed for liquid and temperature sensing applications from Sensata-Cynergy3.

  • Series: TSF70
  • Voltage Rating: 120VDC and 240VAC
  • Output Type: Switch (Single Float)
  • Current Rating: 600mA
  • Mounting Type: Panel Mount
  • Thread: M16x2
  • Material: Polypropylene (PP)
  • Operating Temperature: -20°C to 100°C
  • Moisture Sensitivity Level: 1 (Unlimited)
  • Standard Package: 5 pcs
