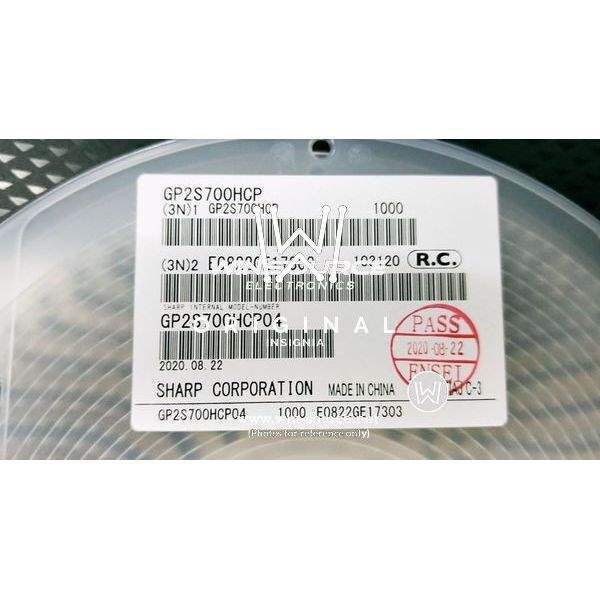

GP2S700HCP Real Image GP2S700HCP label picture
Same model may have multiple batches, images only for reference.
GP2S700HCP Real Image GP2S700HCP label picture
GP2S700HCP Real Image GP2S700HCP label picture
Same model may have multiple batches, images only for reference.

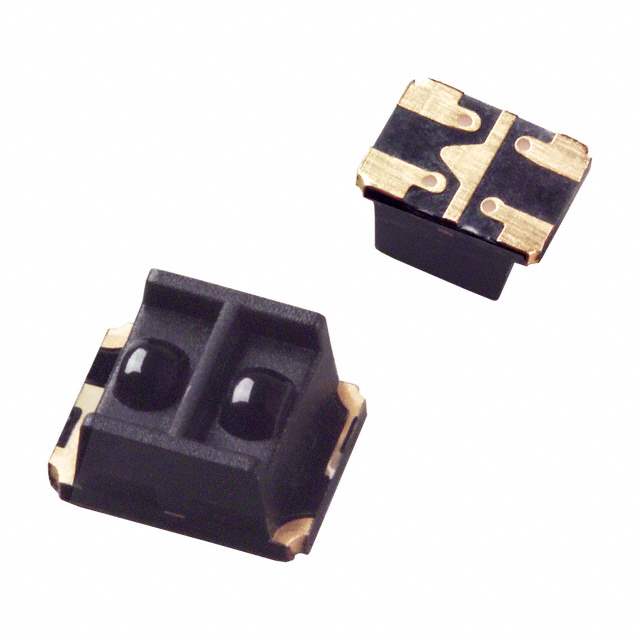

GP2S700HCP

Part No GP2S700HCP
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Reflective - Analog Output
Description PHOTOINTERRUPTER REFLEC 3MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Sharp Microelectronics
Standard Package 1
Category Sensors Transducers
Family Optical Sensors - Reflective - Analog Output
Packaging Reel
Sensing Distance 0.217" (5.5mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Max) 35V
Current - Collector (Ic) (Max) 20mA
Current - DC Forward (If) (Max) 50mA
Output Type Phototransistor
Response Time 20µs
Mounting Style SMD/SMT
Package 4-SMD
Operating Temperature Range -25°C ~ 85°C
Catalog GP2S700HCP
Win Source Part Number 091931-GP2S700HCP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name GP2S700HCP
Introduction Date August 31, 2002
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian GP2S700HCP CAD Model

Description

The Sharp Microelectronics optical sensor (Win Source Part Number 091931-GP2S700HCP) is a reflective analog output sensor.

  • Packaging: Reel
  • Mounting Style: SMD/SMT
  • Operating Temperature: -25°C to 85°C
  • Package Size: 4-SMD
  • Response Time: 20µs
  • Output Type: Phototransistor
  • Voltage - Collector Emitter Breakdown (Max): 35V
  • Current - Collector (Ic) (Max): 20mA
  • Sensing Method: Reflective
