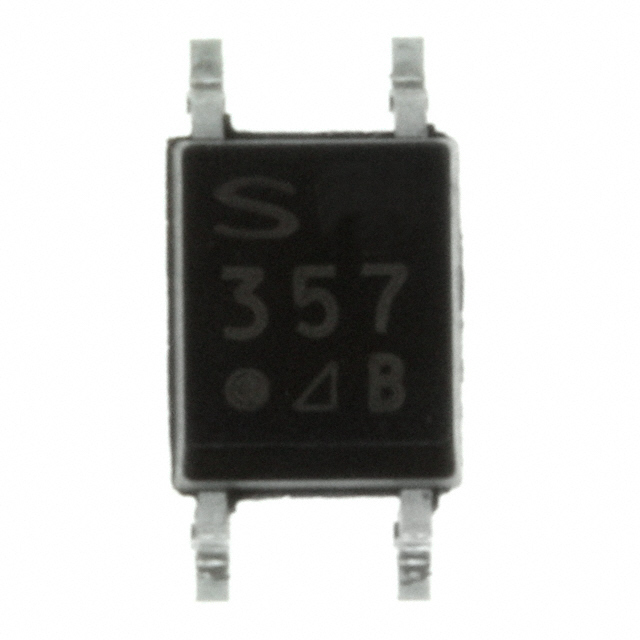

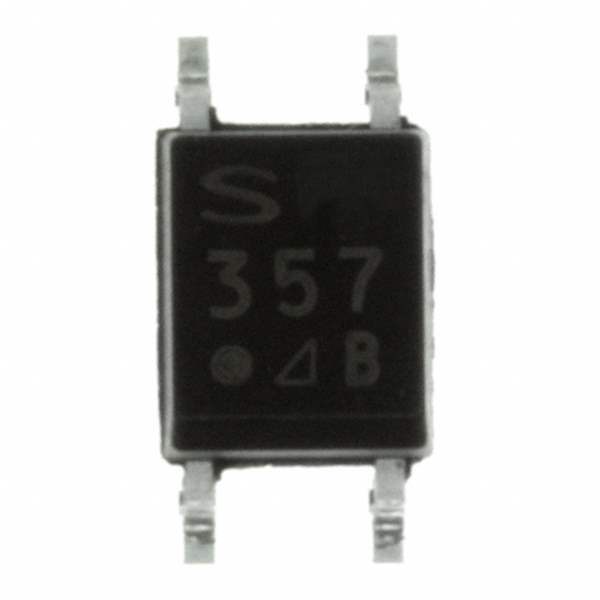

PC357N9J000F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 130% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 115463-PC357N9J000F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing
Family Name PC357N9J000F
Introduction Date February 24, 1997
ECCN EAR99
Country of Origin China, Indonesia, Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian PC357N9J000F CAD Model

Description

The Sharp Microelectronics PC357N9J000F is a high popularity isolator with a 3750Vrms isolation voltage and a 1.2V forward voltage.

  • Case/Package: 4-SMD
  • Applications: computers and computer peripherals, test and measurement, and signal processing
  • DC Current Transfer Ratio (min): 130% @ 5mA
  • DC Current Transfer Ratio (max): 600% @ 5mA
  • Estimated EOL Date: 2026
  • Manufacturer: Sharp Microelectronics
