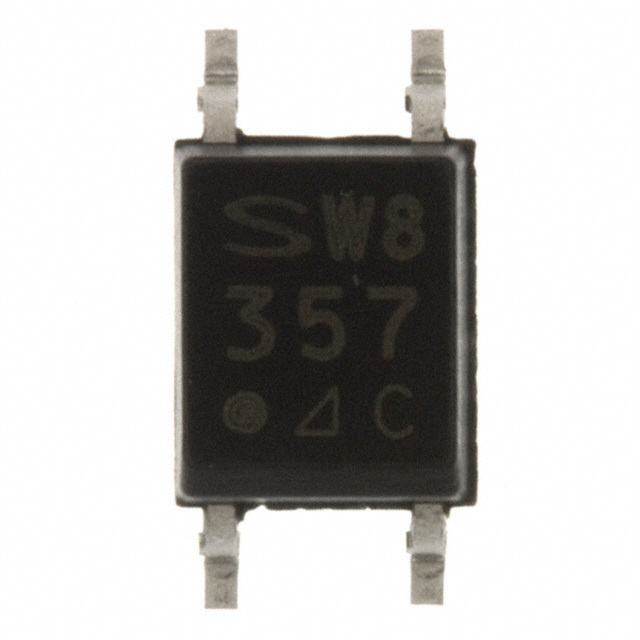

PC357NJ0000F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PC357NJ0000F

Part No PC357NJ0000F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R / OPTOISO 3.75KV TRANSISTOR 4BESOP
Datasheet
PC357NJ0000F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 026418-PC357NJ0000F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing
Family Name PC357NJ0000F
Introduction Date February 24, 1997
ECCN EAR99
Country of Origin China, Indonesia, Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian PC357NJ0000F CAD Model

Description

The Sharp Microelectronics PC357NJ0000F is a transistor output optocoupler with a minimum DC current transfer ratio of 50% @ 5mA and a maximum DC current transfer ratio of 600% @ 5mA.

  • Switching Turn-On Time: 4μs
  • Switching Turn-Off Time: 3μs
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Isolation Voltage: 3750Vrms
  • Applications: computers and computer peripherals, test and measurement, and signal processing
  • Manufacturer: Sharp Microelectronics
  • Packaging: reel
