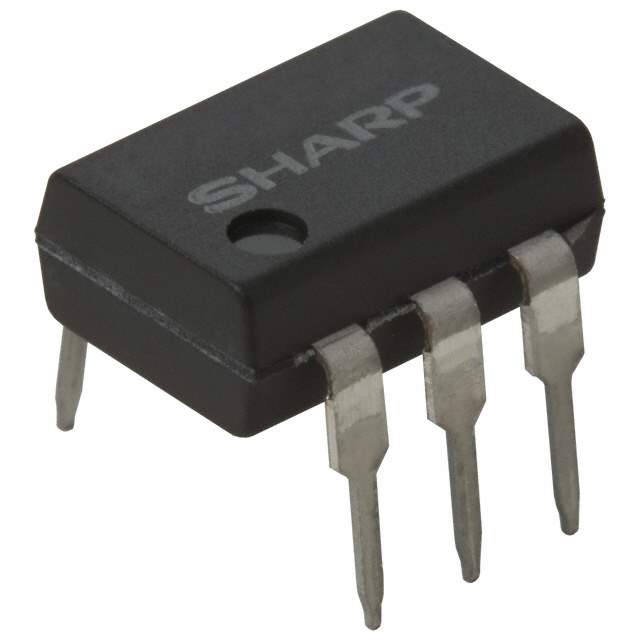

PC3SD12NTZAH Real Image
Same model may have multiple batches, images only for reference.

PC3SD12NTZAH

Part No PC3SD12NTZAH
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Estimated Pruduction Lead Time 18 Weeks
Features Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
Manufacturer Sharp Microelectronics
Package Tube
Operating Temperature Range -30°C ~ 100°C
Mounting Through Hole
Package 6-DIP (0.300", 7.62mm)
Case / Package 6-DIP
Family Name PC3SD12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.40.8000
Quantity per package 60
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888649-PC3SD12NTZAH
Ultra Librarian 3D Model Ultra Librarian PC3SD12NTZAH CAD Model

Description

The PC3SD12NTZAH is a 1-channel Optoisolator Triac Output from Sharp Microelectronics, with a package of 6-DIP (0.300", 7.62mm).

  • Operating Temperature: -30°C to 100°C
  • Isolation Voltage: 5000Vrms
  • Series: PC3SD12
  • Category: Isolator
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 18 weeks
