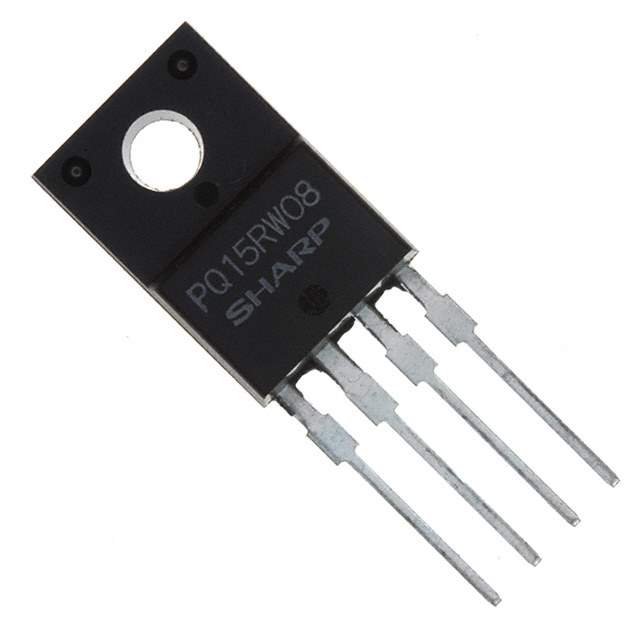

PQ15RW08 Real Image
Same model may have multiple batches, images only for reference.

PQ15RW08

Part No PQ15RW08
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.8A TO220-4
Datasheet
PQ15RW08 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 3V
Maximum Output Voltage 15V
Dropout Voltage-Max 0.5A @ 500mA
Output Current 800mA
Operating Supply Current 8mA
PSRR 55dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 1089885-PQ15RW08
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ15RW08 CAD Model

Description

The PQ15RW08 is an adjustable output type integrated circuit regulator that belongs to the integrated circuits category.

  • Packaging: tube/rail
  • Mounting Type: through-hole
  • Regulators: single
  • Maximum Input Voltage: 20V
  • Nominal Output Voltage: 3V
  • Maximum Output Voltage: 15V
  • Maximum Output Current: 800mA
  • Operating Supply Current: 8mA
  • Protection Features: over current and over-temperature control
  • Temperature Range: -20°C to 80°C
  • Manufacturer: Sharp Microelectronics
