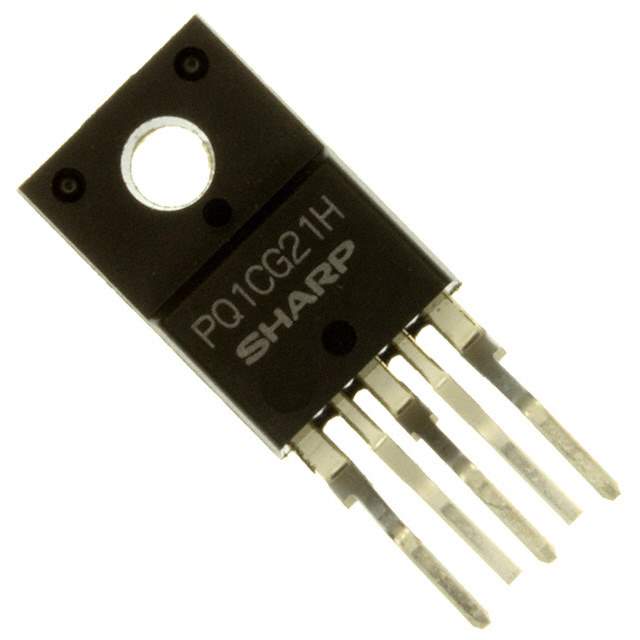

PQ1CG21H2FZ Real Image
Same model may have multiple batches, images only for reference.

PQ1CG21H2FZ

Part No PQ1CG21H2FZ
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description Chopper Regulator
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Function Step-Down
Output Configuration Positive or Negative
Topology Buck
Output Type Adjustable
Number of Outputs 1
Input Voltage MIN 8V
Voltage Input MAX 35V
Output Voltage ±1.26V
Output Voltage MAX 35V, -30V
Output Current 1.5A
Frequency - Switching 100kHz
Synchronous Rectifier No
Operating Temperature Range -20°C ~ 80°C (TA)
Mounting Style Through Hole
Package TO-220-5 Formed Leads
Manufacturer Package TO-220-5
Win Source Part Number 1239280-PQ1CG21H2FZ
Manufacturer Homepage sharp-world.com/
Popularity Medium
Supply and Demand Status Limited
Family Name PQ1CG21H2
Introduction Date August 02, 2001
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian PQ1CG21H2FZ CAD Model

Description

The Sharp Microelectronics PQ1CG21H2FZ is a step-down buck integrated circuit that is obsolete (EOL).

  • Output Configuration: Positive or Negative
  • Synchronous Rectifier: No
  • Output Current: 1.5A
  • Output Voltage: ±1.26V
  • Package / Case: TO-220-5 Formed Leads
  • Mounting Type: Through Hole
  • Operating Temperature: -20°C ~ 80°C (TA)
  • Frequency - Switching: 100kHz
