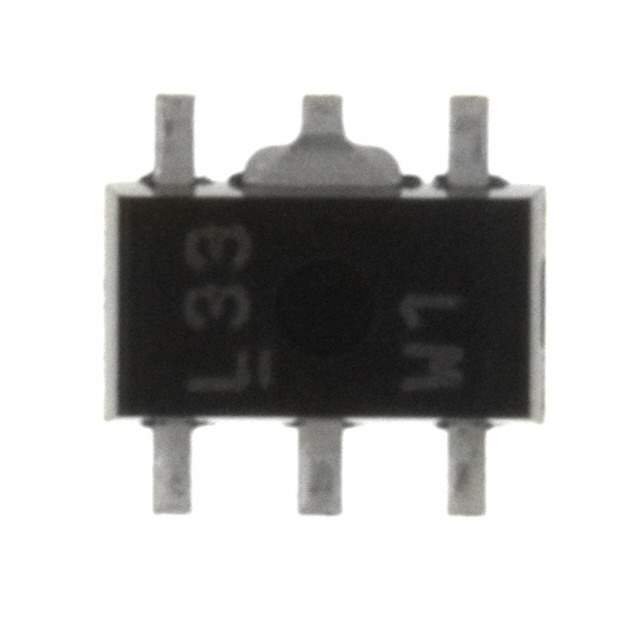

PQ1L333M2SPQ Real Image
Same model may have multiple batches, images only for reference.

PQ1L333M2SPQ

Part No PQ1L333M2SPQ
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 0.3A SOT89
Datasheet
PQ1L333M2SPQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.7V @ 300mA
Output Current 300mA
Operating Supply Current 500μA
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -30°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 0.3V @ 300mA
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 105418-PQ1L333M2SPQ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ1L333M2SPQ CAD Model

Description

The Sharp Microelectronics 105418-PQ1L333M2SPQ is an obsolete (EOL) electronic component that is still popular among electronic enthusiasts.

  • Supply and Demand Status: balanced
  • Component Type: positive fixed regulator
  • Output Voltage: 3.3V
  • Output Current: 300mA
  • Features: enable control, over-current protection, and over-temperature protection
  • Operating Temperature Range: -30°C to 80°C
  • Characteristics: reliable and efficient
  • Suitability: perfect for use in various electronic devices.
