PQ1L503M2SPQ Sharp Microelectronics
Same model may have multiple batches, images only for reference.

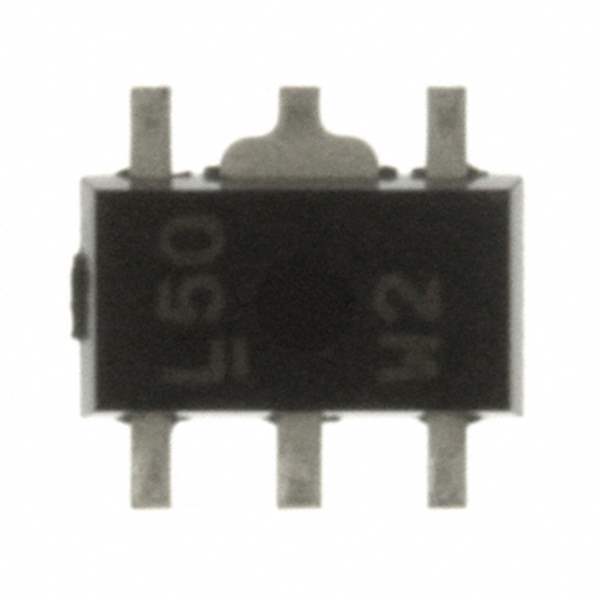

PQ1L503M2SPQ

Part No PQ1L503M2SPQ
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 0.3A SOT89
Datasheet
PQ1L503M2SPQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.7V @ 300mA
Output Current 300mA
Operating Supply Current 500μA
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -30°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 0.3V @ 300mA
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 111472-PQ1L503M2SPQ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ1L503M2SPQ CAD Model

Description

The Sharp Microelectronics PQ1L503M2SPQ is a positive fixed regulator with an output voltage of 5V and an output current of 300mA.

  • Feature: enable control feature
  • Protection: protection against over current and over temperature
  • Dropout Voltage: 0.3V @ 300mA
  • Maximum Input Voltage: 16V
  • Package: SOT-89
  • Mounting: SMD (SMT)
  • Status: obsolete(EOL)
  • Operating Temperature: -30°C to 80°C
  • Supply and Demand Status: balanced
